Removing Main Headlight

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

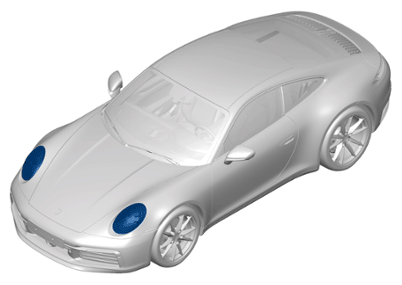

Installation position

1. Release and disconnect electric plug connection.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

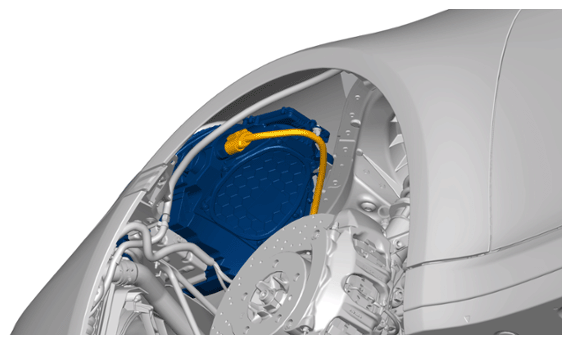

   Electric plug connection

2. Loosen fastening screws.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

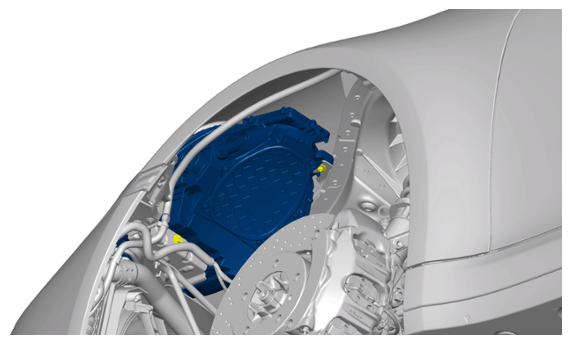

   Fastening screws on headlight

3. Carefully pull out the headlight by pulling it forward out of the guide.
