Installing Main Headlight

Carefully slide the main headlight into the guides.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

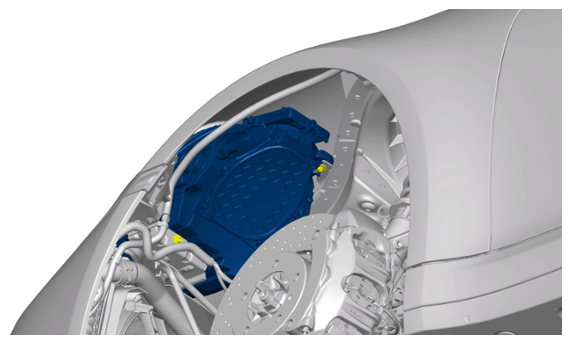

Rear guide

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

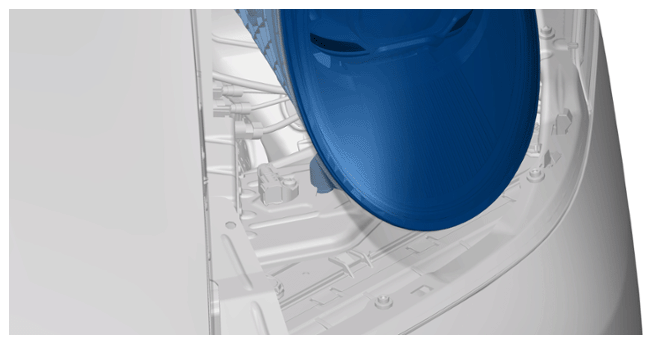

Front guide
Fit fastening screws and tighten to > Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

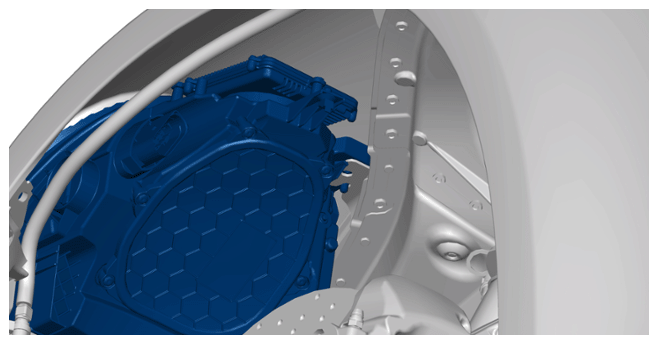

Fastening screws on headlight
Connect electric plug connection.
Electric plug connection must engage securely.
