Removing Striker Pin

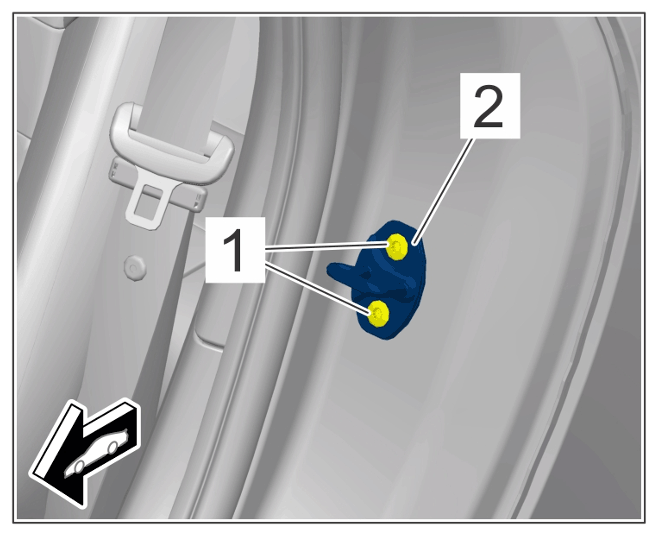

  1. Mark position of lock peg (striker pin).
  2. Unscrew screws -1-  and remove striker pin (lock peg) -2-  .
    G15532962Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lock peg
