Removing Front KESSY/Pas Antenna

  1. Release electric plug connection and disconnect it.
    G15535451Courtesy of PORSCHE CARS NORTH AMERICA, INC.

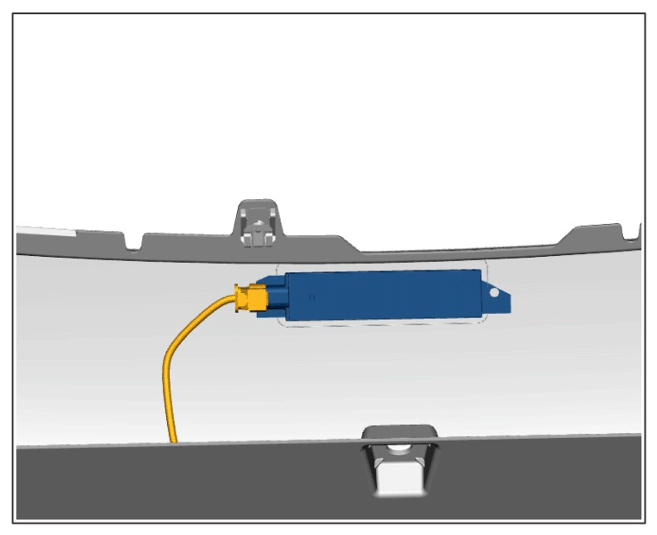

    Electric plug connection

  2. Loosen bonded KESSY/PAS antenna from the front apron.
G15535452Courtesy of PORSCHE CARS NORTH AMERICA, INC.

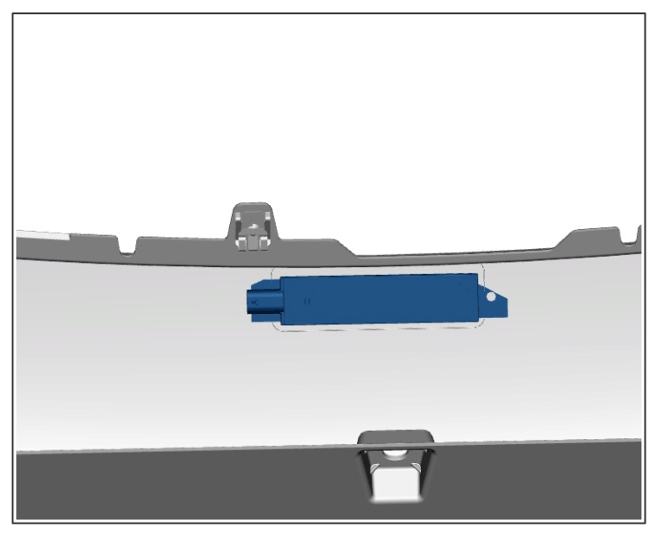

KESSY/PAS antenna
