Installing Front KESSY/Pas Antenna

  1. Remove adhesive residues and clean bonding surface on KESSY/PAS antenna with isopropanol.

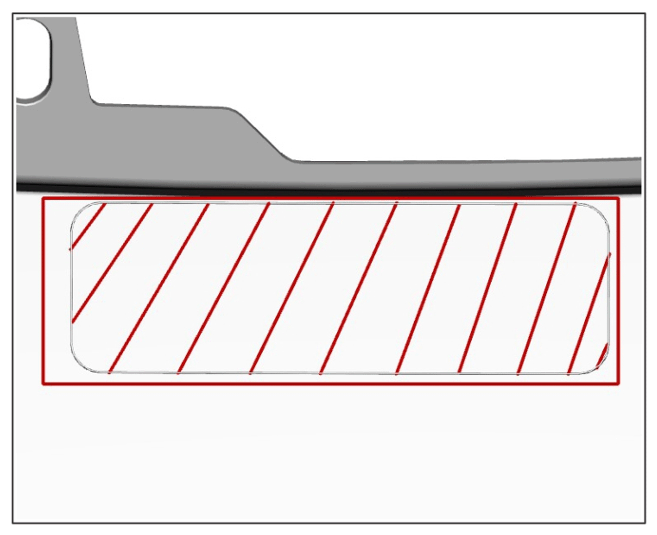

    G15535453Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding surface on KESSY/PAS antenna

  2. Affix KESSY/PAS antenna to the cleaned surface and press it on firmly.

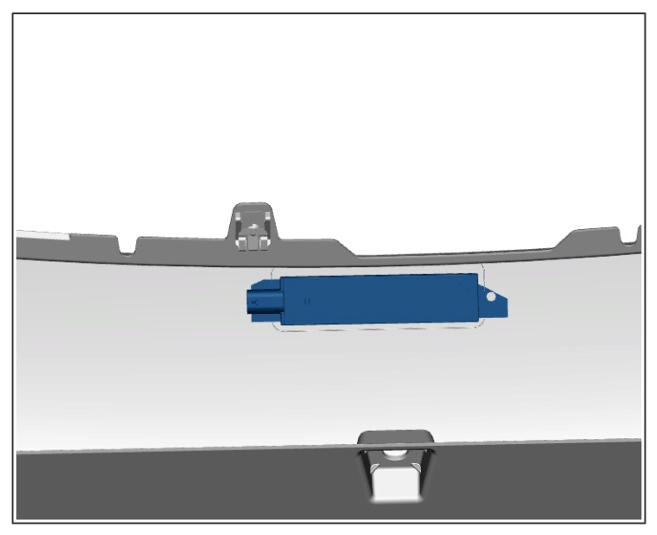

    G15535454Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    KESSY/PAS antenna

  3. Connect electric plug connections.

    The electric plug connection must engage perceptibly.

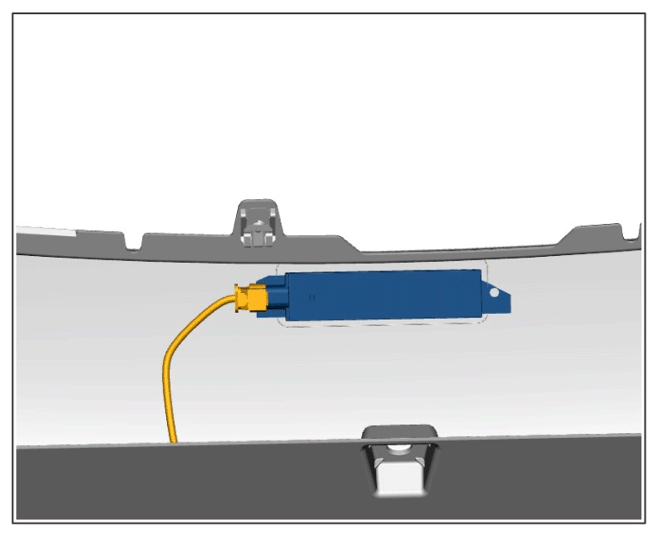

    G15535455Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection
