96 Lights, Lamps, Switches-Interior, Anti-Theft Protection -- 992 - 911 CARRERA (992)
>>
WM, 966719 Removing And Installing (Rear) KESSY/Pas Antenna
>>
Removing (Rear) KESSY/Pas Antenna
Removing (Rear) KESSY/Pas Antenna

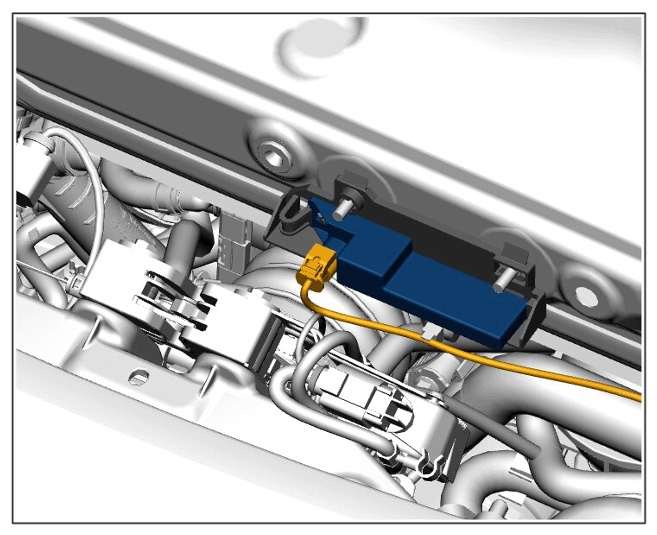

Release and pull off electric plug connection for Kessy antenna.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electric plug connection

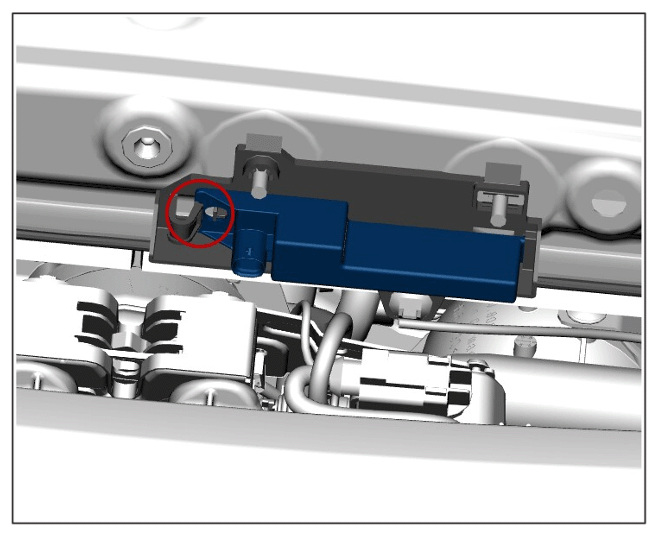

Unclip Kessy antenna from the holder.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Kessy antenna
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
