96 Lights, Lamps, Switches-Interior, Anti-Theft Protection -- 992 - 911 CARRERA (992)
>>
WM, 964419 Removing And Installing Glove Box Light
>>
Removing Glove Box Light
Removing Glove Box Light

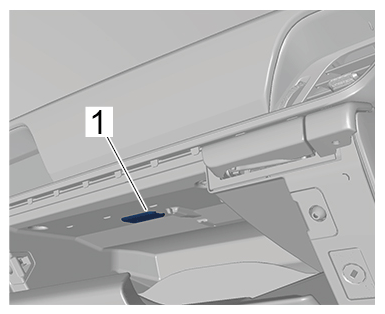

Unclip glove box light
-1-
on the right side using a suitable tool.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Glove box light

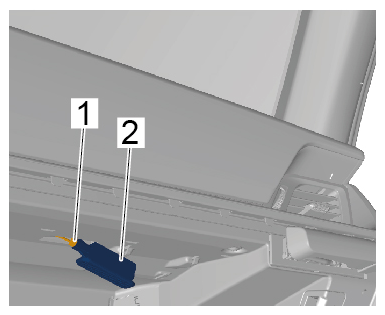

Release and disconnect electric plug connection
-1-
and remove glove compartment light
-2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electric plug connection
