Removing Luggage Compartment Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

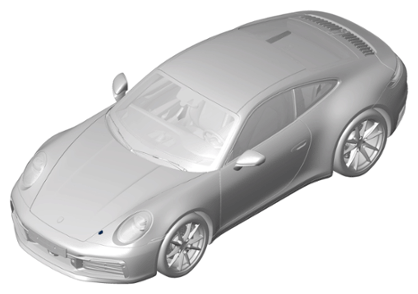

Installation position

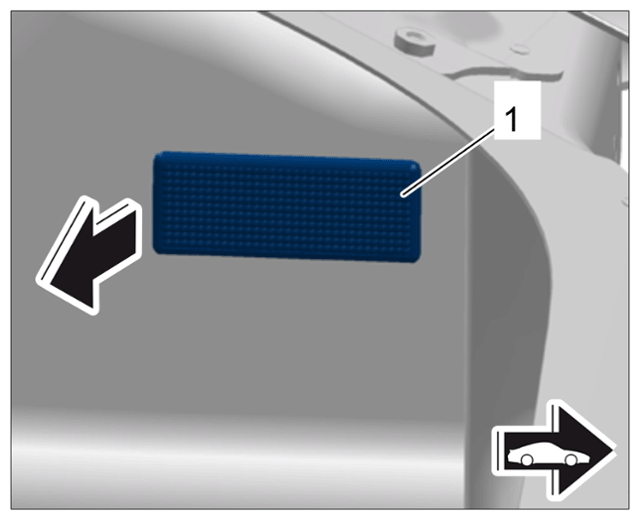

1. Unclip luggage compartment light -1-  from luggage compartment trim using a suitable tool -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping luggage compartment light

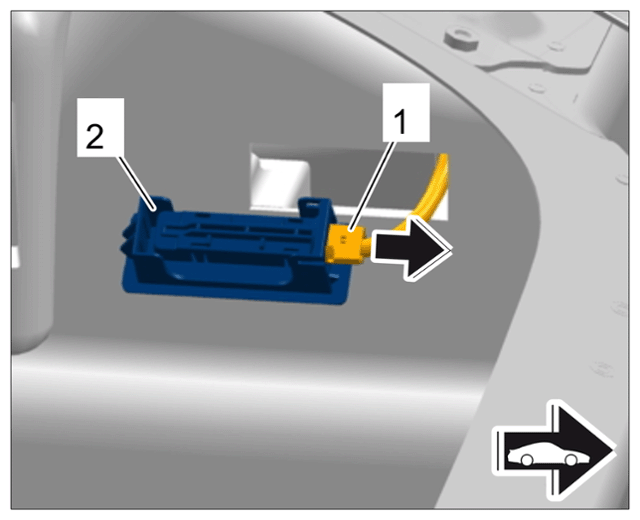

2. Release and disconnect electric plug connection -1-  and remove luggage compartment light -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting electric plug connection
