Removing Front Camera
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
→ Switch off electrical loads before disconnecting or removing them.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
- The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
- The electrical pins or plug contacts must not be touched.
Information
Do not touch the front camera lens!

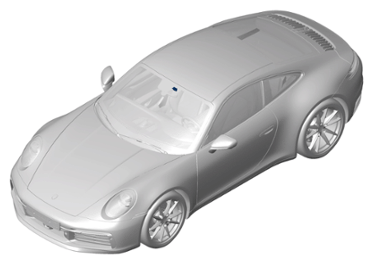

Installation position
- Unclip front camera from the holder and remove it.
- 1.1 Pull metal clip forward.
- 1.2 Pull down front camera.
- 1.3 Remove front camera.

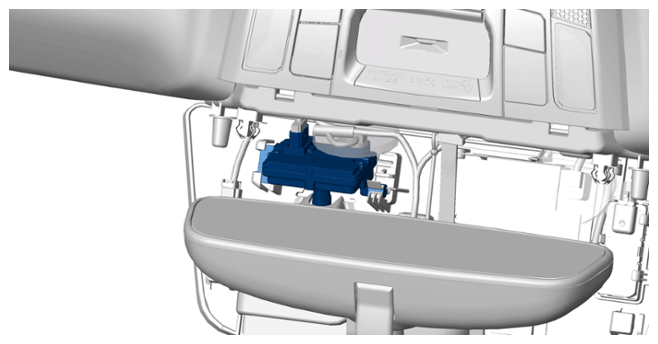

Unclipping front camera
- Release and unplug electric plug connections -1- .

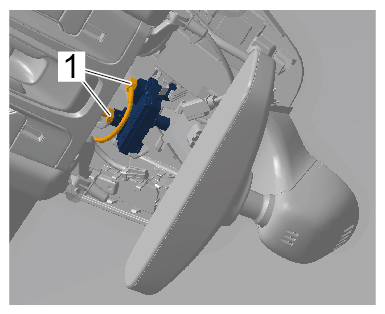

Electric plug connections on front camera
