Removing (Rear) Switch Console

  1. Unclip (rear) switch console -1-  .

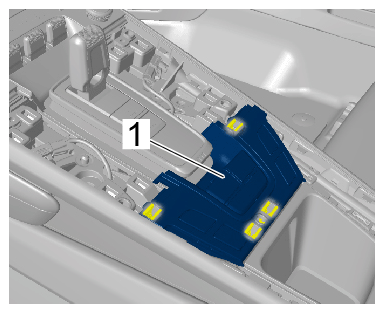

    G15535413Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Switch console (rear)

  2. Remove (rear) switch console -1-  until the electric plug connection -2-  is accessible.
    G15535414Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  3. Release and unplug electric plug connection -2-  .

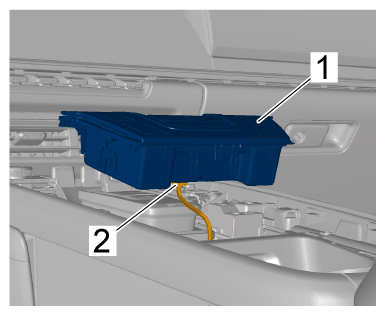

    G15535415Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  4. Remove (rear) switch console.
