Removing Switch Console In Centre Console (Front)

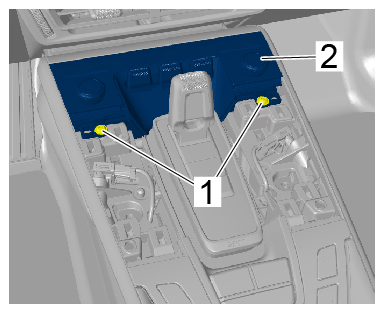

  1. Unscrew fastening screws -1-  from switch console in (front) centre console -2-  .
    G15535407Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

  2. Loosen switch console plug connection and remove it.

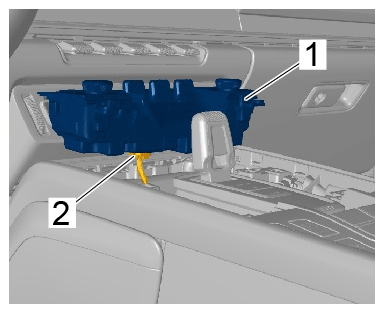

    1. 2.1 Remove switch console in (front) centre console -1-  until the electric plug connection -2-  is accessible.
    2. 2.2 Release and unplug electric plug connection -2-  .
    G15535408Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Switch console in centre console (front)
