Installing Switch Console In Centre Console (Front)

  1. Installation is performed in reverse order. Pay particular attention to the following:

    Tighten fastening screws -1-  to > Tightening torque 3.2 Nm (2.1 ftlb.) +/- 0.3 Nm (0.2 ftlb.)  until secure.

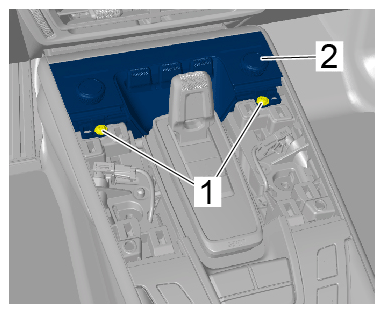

    G15535409Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws
