Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Switch console in centre console (centre of dashboard) to dashboard trim panel Item 1 Tightening torque 3.2 Nm (2.1 ftlb.)

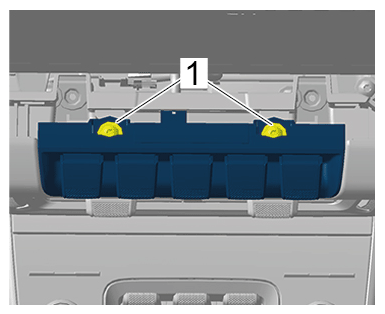

G15535417Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
