Removing Switch Console (Centre Of Dashboard)

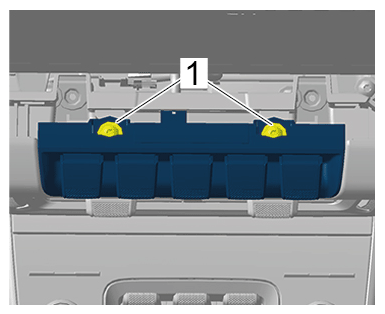

  1. Unscrew fastening screws -1-  .
    G15535419Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

  2. Loosen and remove switch console (centre of dashboard).

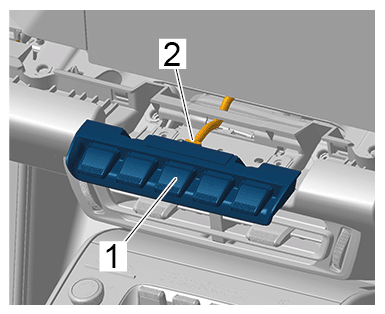

    1. 2.1 Remove switch console (centre of dashboard) -1-  until the electric plug connection -2-  is accessible.
    2. 2.2 Release and disconnect electric plug connection -2-  and remove switch console (centre of dashboard) -1-  .
    G15535420Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Switch console (centre of dashboard)
