Installing Switch Console (Centre Of Dashboard)

  1. Installation is performed in reverse order. Pay particular attention to the following:

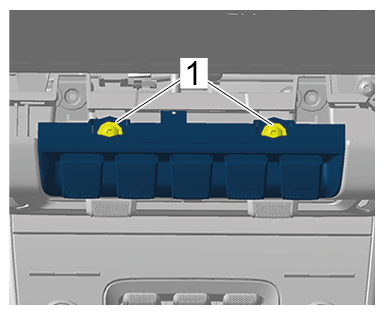

    Tighten fastening screws -1-  to > Tightening torque 3.2 Nm (2.1 ftlb.)  until secure.

    G15535421Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws
