Removing FOOTWELL Light

  1. Remove footwell light -1-  .
    1. 1.1 Unclip footwell light -1-  using a plastic wedge.
    2. 1.2 Release and unplug electric plug connection -2-  .
    3. 1.3 Remove footwell light -1-  .

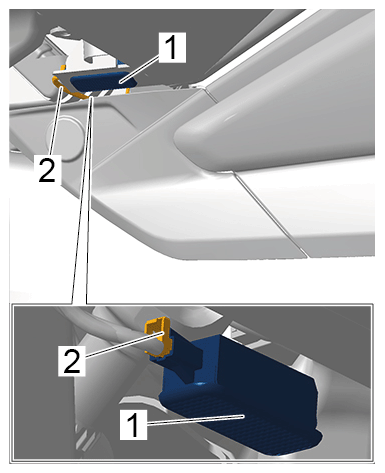

    G15535399Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Footwell light
