Disassembling Front Apron
- Remove front spoiler.
- Remove side direction indicator lights at the left and right.
> 945319 REMOVING AND INSTALLING SIDE DIRECTION INDICATOR LIGHT
Information
Only for vehicles with headlight cleaning system.
- Detach headlight-washer spray nozzle at the left and right with washer-fluid hose connected.
> 927219 REMOVING AND INSTALLING HEADLIGHT-WASHER SPRAY NOZZLE
- Remove auxiliary headlights at the left and right.
> 947119 REMOVING AND INSTALLING AUXILIARY HEADLIGHTS
Information
Only for vehicles with ParkAssist.
- Remove ParkAssist sensors.
- Remove front air grille at the left and right.
- Remove front number plate cover.
- Remove front wire harness at the left and right.
- Remove mobile communication antenna in front apron.
> 914719 REMOVING AND INSTALLING MOBILE COMMUNICATION ANTENNA IN FRONT APRON
Information
Only for vehicles with adaptive cruise control/Porsche Active Safe (PAS).
- Remove proximity sensor for front lid.
> 552319 REMOVING AND INSTALLING PROXIMITY SENSOR FOR FRONT LID
- Remove radiator grille.
- Remove cover on towing lug > Cover for towing lug
.
Information
Only for vehicles with headlight cleaning system.

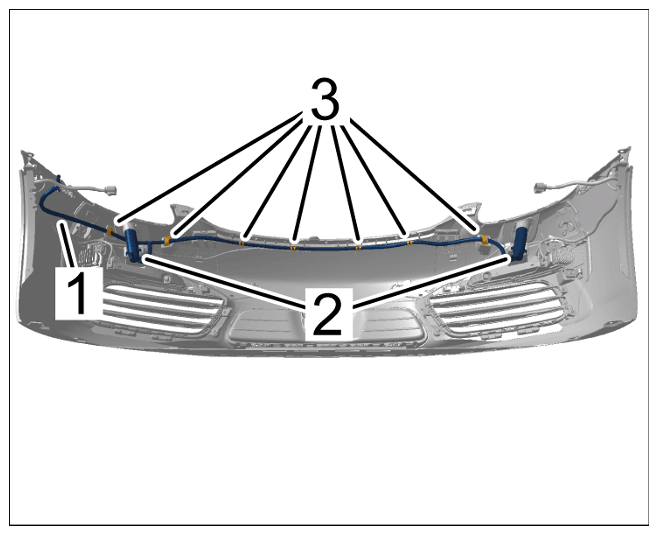

- Unclip washer-fluid hose at the holders -3- and remove washer-fluid hose -1- and headlight-washer spray nozzles -2- .
