Removing Front Logo

  1. Unclip cover -arrow-  .
    G14954484Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove logo -1-  .

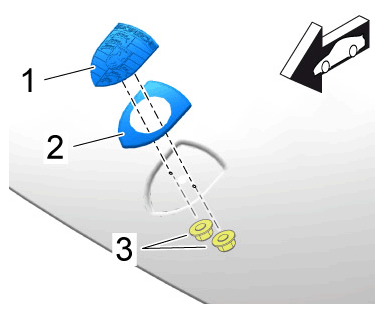

G14954485Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 2.1 Unscrew nuts -3-  .
  2. 2.2 Remove the logo -1-  and base -2-  .
