Removing And Installing Instrument Cluster

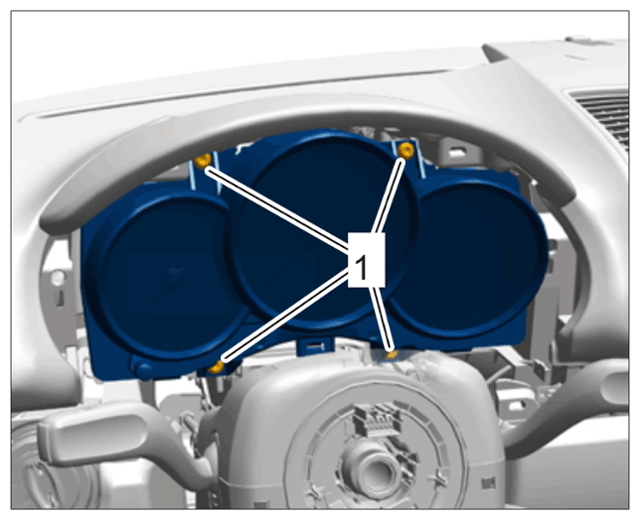

  1. Unscrew and remove screws -1-  .
    G14955929Courtesy of PORSCHE CARS NORTH AMERICA, INC.

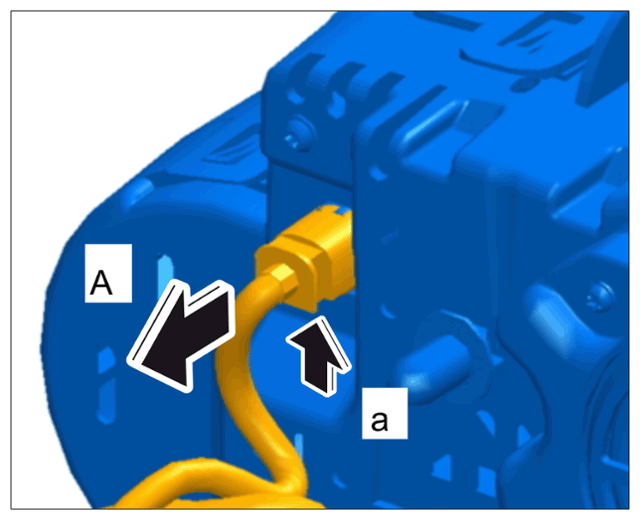

  2. Release electric plug connection -arrow a-  and disconnect it -arrow A-  .
    G14955930Courtesy of PORSCHE CARS NORTH AMERICA, INC.

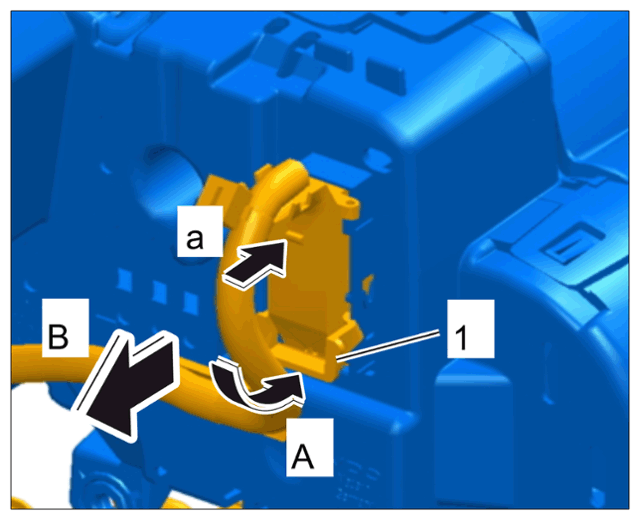

  3. Release electric plug connection -arrow a-  and disconnect it -arrow B-  .
    1. 3.1 Release clip -1-  on electric plug connection -arrow a-  and fold it down -arrow A-  .
    2. 3.2 Disconnect electric plug connection -arrow B-  .
    G14955931Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Installation is performed in reverse order.
