Removing And Installing Front Apron

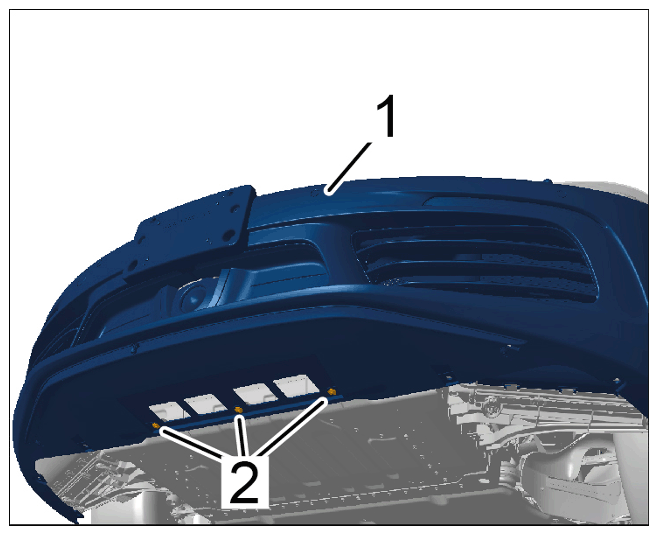

Unscrew and remove screws -2- at the bottom of the front apron -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

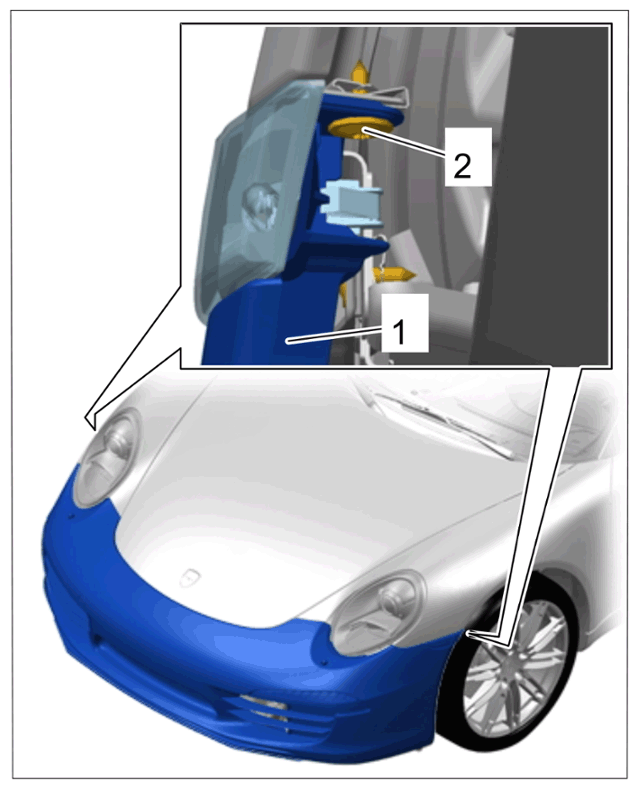

Unscrew and remove screws -2- at the left and right sides of the front apron -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- A tight hose can be pulled off more easily after heating it with a hot-air gun.
- Collect washer fluid in a suitable container.
Information
- Only for vehicles with headlight cleaning system.

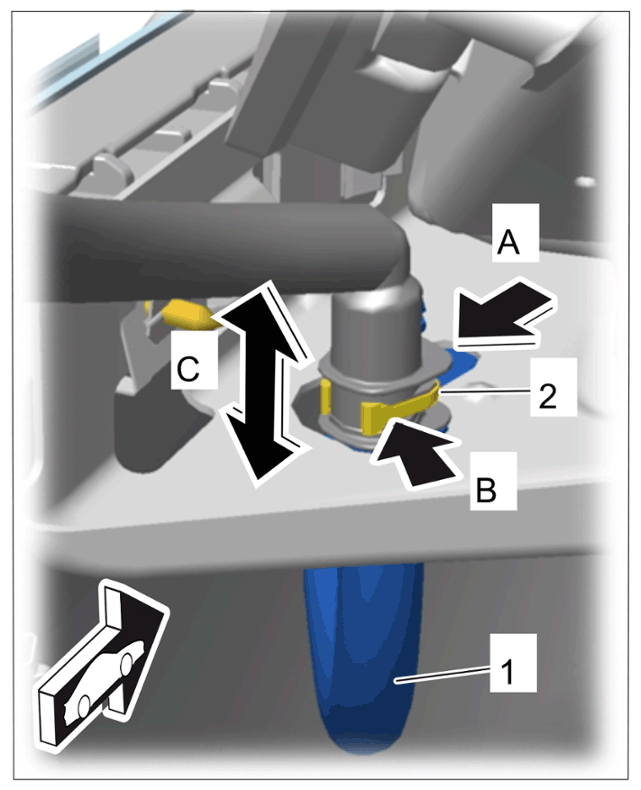

Unclip washer-fluid hose -1- from the body in the left wheel housing area and disconnect it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

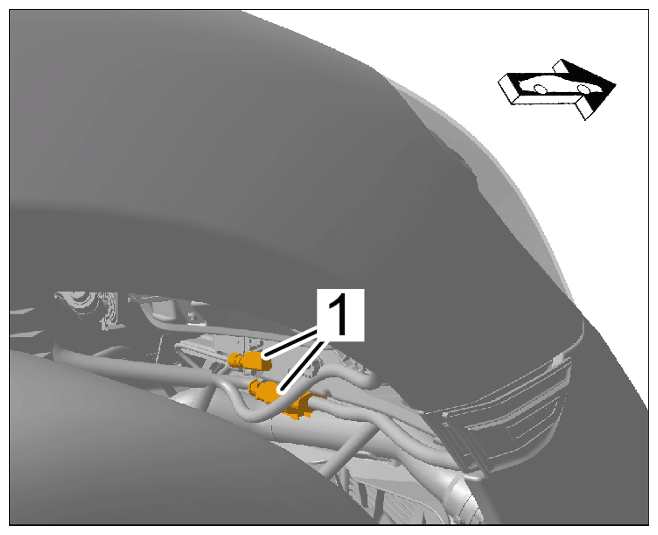

Disconnect electric plug connection -1- in the left wheel housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

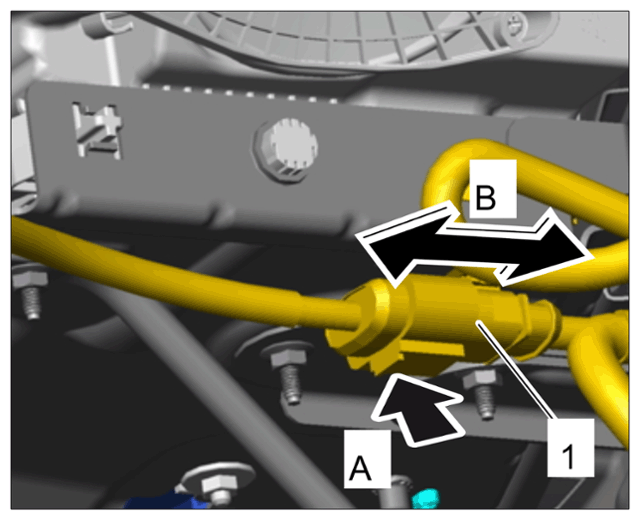

Disconnect electric plug connections -1- in the right wheel housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

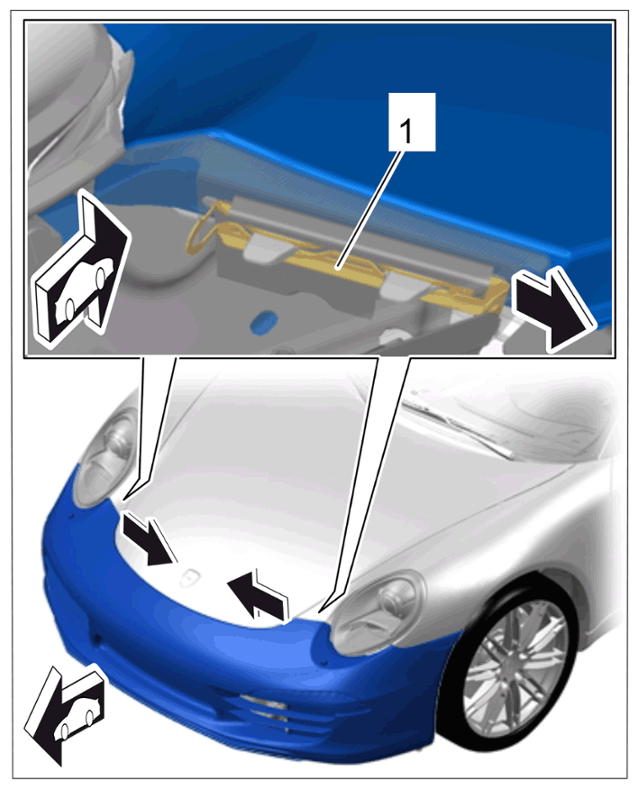

Carefully lift up covers in the headlight area and loosen locking mechanisms -1- using > T10118 - assembly tool .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

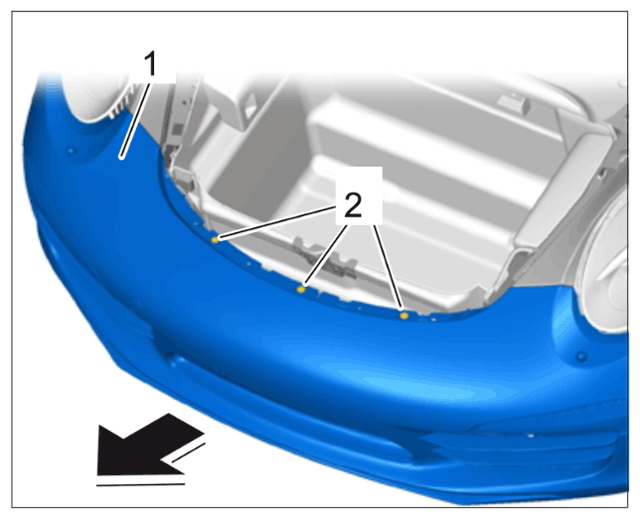

Unscrew and remove screws -2- at the top of the front apron -1- .
Information

The help of another person is required.
Remove front apron -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation is performed in reverse order.
