Removing Oil Cooler

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding
    • forward Avoid contact with hot fluid.
    • forward Wear personal protective gear.
CAUTION: Hot components
  • Risk of burns
    • forward Let hot components cool down.
    • forward Wear personal protective gear.
  1. Screw off fastening nuts -1-  .
  2. Take off heat shield -2-  .
    G14946356Courtesy of PORSCHE CARS NORTH AMERICA, INC.

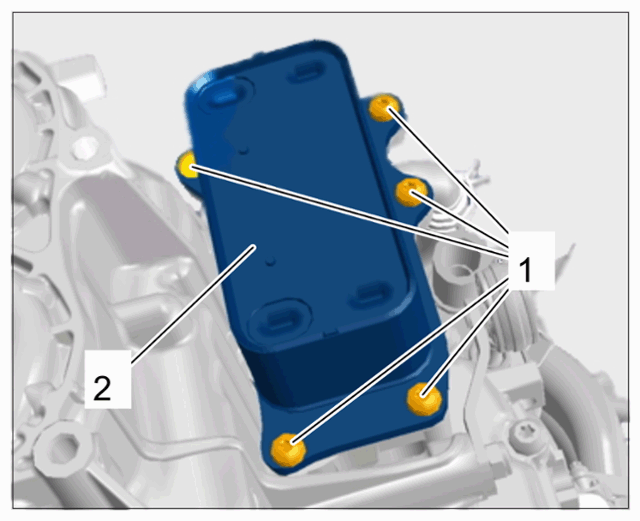

  3. Unscrew fastening screws -1-  .
  4. Remove oil cooler -2-  .

    Collect escaping fluids.

G14946357Courtesy of PORSCHE CARS NORTH AMERICA, INC.
