Removing And Installing Transmission Control Unit (PDK)

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

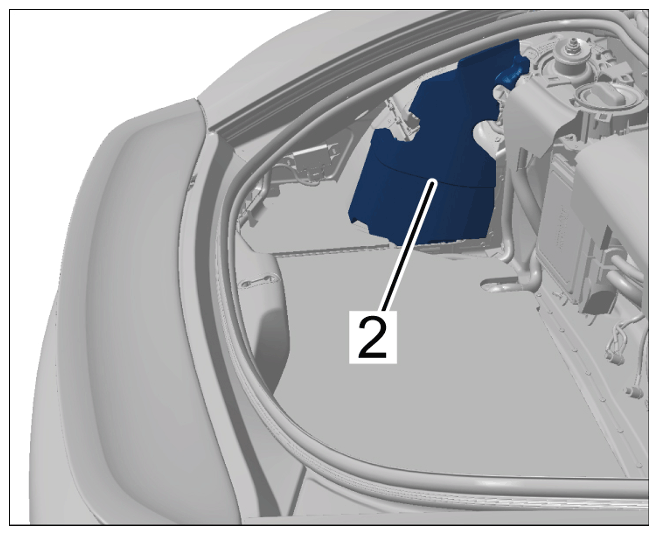

1. Remove foam part -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

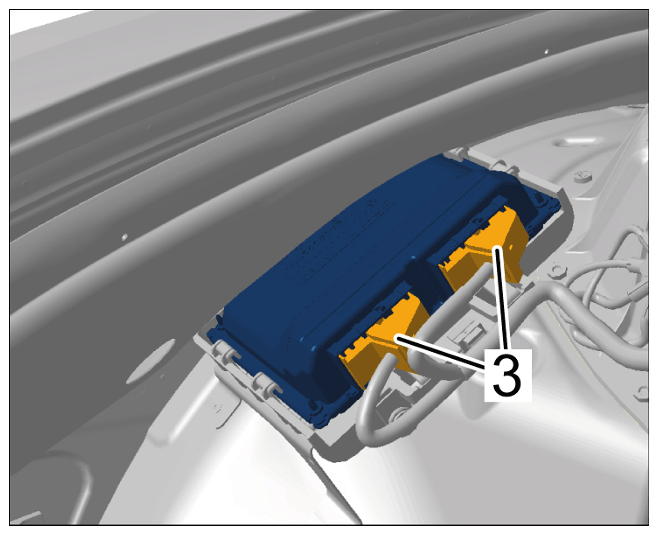

2. Disconnect electric plug connections -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

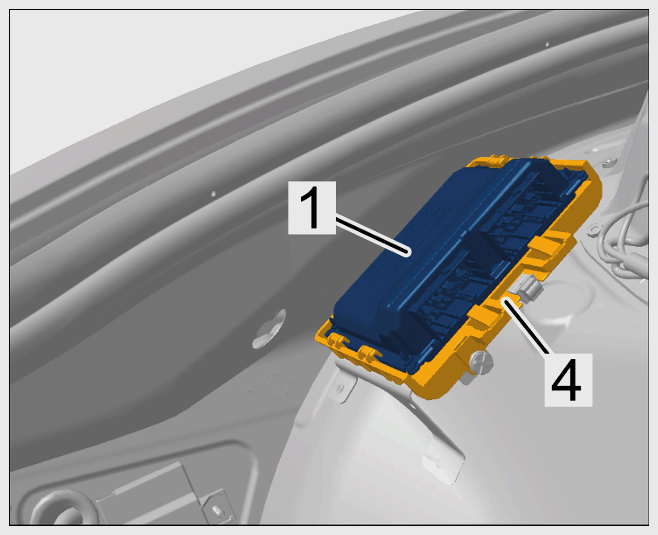

3. Loosen transmission control unit (PDK) -1-  from the bracket -4-  and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. Installation is performed in reverse order.
