Draining Oil For Final Drive
WARNING: This page is about a different variant/trim than selected.
WARNING:
Hot fluid
- Danger of scalding
- forward Let the fluid cool down.
- forward Wear personal protective gear.
- Drain oil.

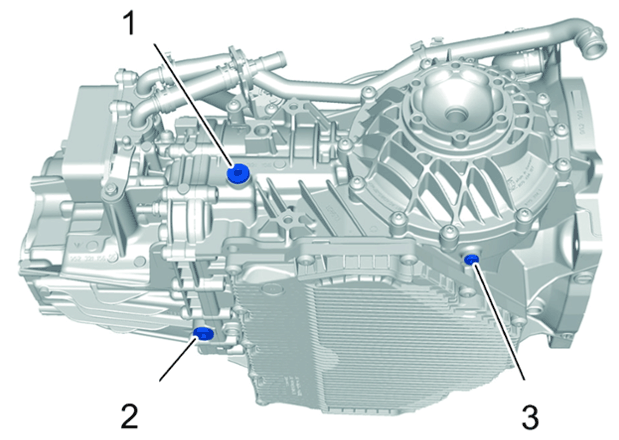

- 1.1 Unscrew oil drain plug for differential space -3- and drain oil.
- 1.2 When only drops of oil are emerging, screw in and tighten new oil drain plug for differential space -3-
.
>Tightening torque 10 Nm (7.5 ftlb.)
- 1.3 Unscrew oil drain plug for gearwheel set space -2- and drain oil.
- 1.4 When only drops of oil are emerging, screw in and tighten new oil drain plug for gearwheel set space -2-
.
>Tightening torque 27 Nm (20 ftlb.)
