Installing Housing Neck For Left HALFSHAFT Flange
WARNING: This page is about a different variant/trim than selected.

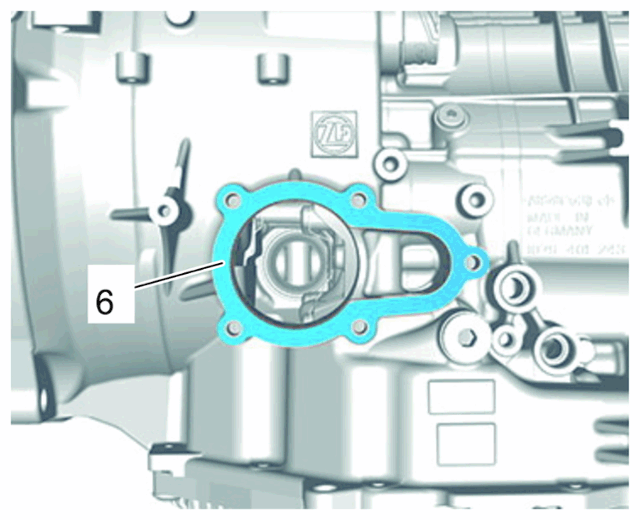

- Fit a new seal on the housing neck -6-
.
- Further installation is performed in reverse order to removal.
Use new fastening screws.
Check seals on the oil lines and replace them if necessary.
Fastening screws on housing neck > Initial tightening + yield strength 6 Nm (4.5 ftlb.) .
Fastening screws for ATF cooler > Initial tightening + yield strength 2.4 Nm (2 ftlb.) .
Fastening screw securing oil lines to transmission housing > Initial tightening + yield strength 6 Nm (4.5 ftlb.) .
