Removing Sealing Ring On Left Halfshaft Flange

WARNING: This page is about a different variant/trim than selected.

Have a suitable container ready for collecting emerging oil.

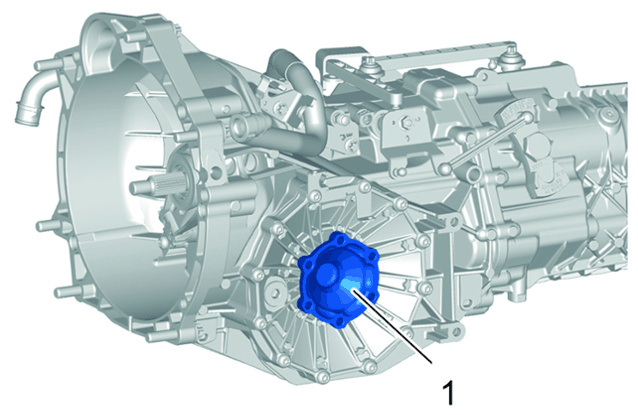

Remove halfshaft flange -1- .
Information
- Check thread pitch! The fastening screws for the drive shaft are ideal.
- Use spacer sleeves or nuts to prevent the screws from touching the transmission.
1. 2.1 > T10037 - Puller must be fitted on the halfshaft flange -1- using two screws.
2. 2.2 Pull off halfshaft flange -1- . Collect emerging oil.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

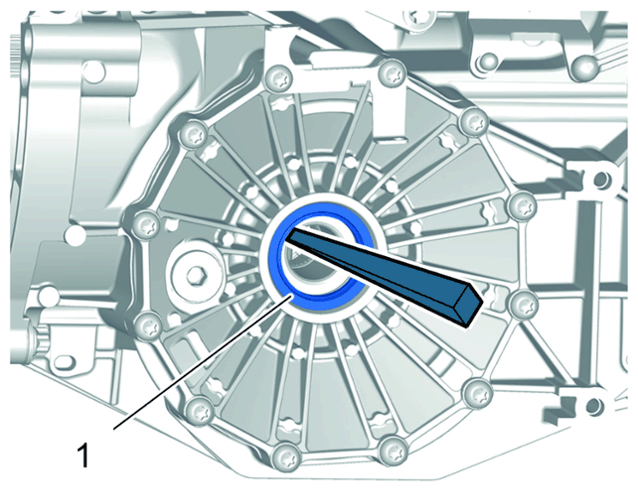

Carefully lever the sealing ring -1- out of the transmission using a suitable tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
