Removing Temperature Sensor
WARNING: This page is about a different variant/trim than selected.

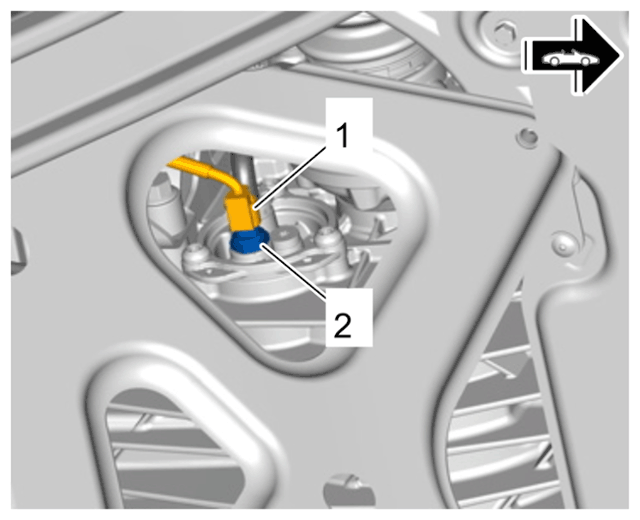

- Release and disconnect electric plug connection -1-
and protect it from soiling using appropriate means, e.g. a plastic bag.
- Have suitable aids ready for collecting residual amounts of transmission oil.
- Unscrew temperature sensor -2-
and collect emerging residual amounts of transmission oil.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
