Removing Transmission Mount

WARNING: This page is about a different variant/trim than selected.

Information

The illustrations are merely examples and may differ slightly.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

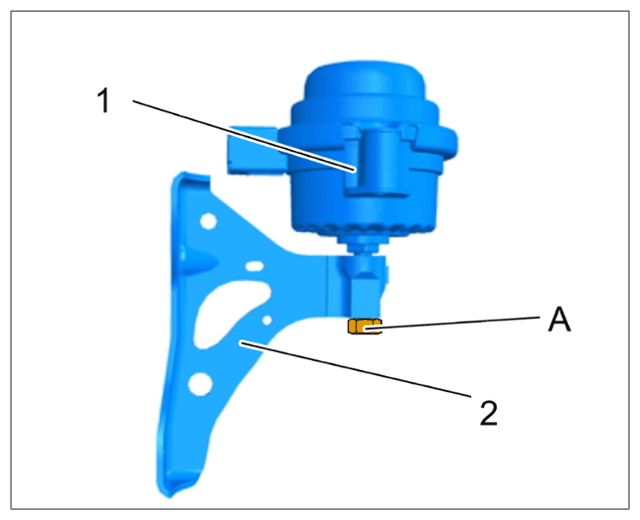

The nut -A- on the transmission mount -1- must only be loosened if the transmission mount -1- has to be replaced.
Counter at the two flats on the gear support -2- while loosening.
Do not loosen the nut -A- during re-installation.

Support the transmission using > VAS 6931 - engine and gearbox jack.

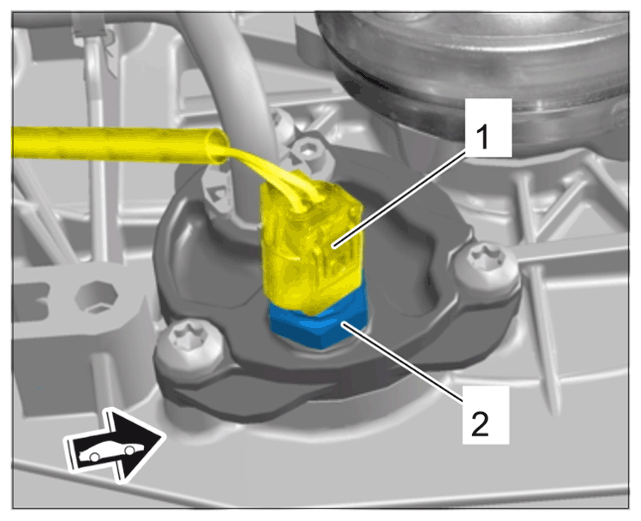

When removing the right transmission mount: Release and disconnect electric plug connection -1- on the oil temperature sensor -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

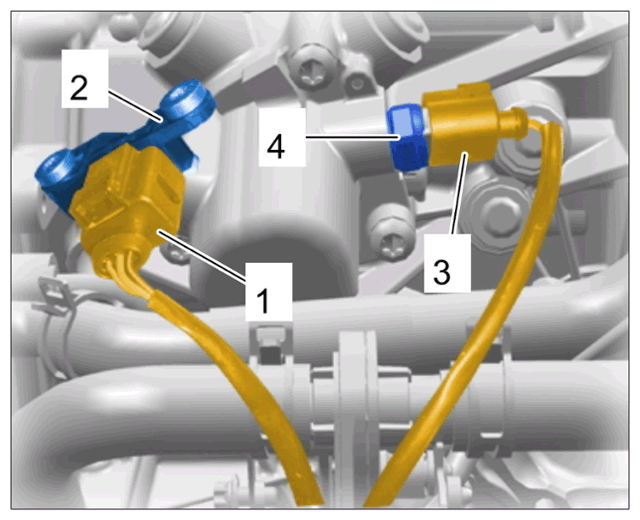

When removing the right transmission mount: Release and disconnect electric plug connections -1 and 3- on the neutral gear sensor -2- and on the reversing light switch -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

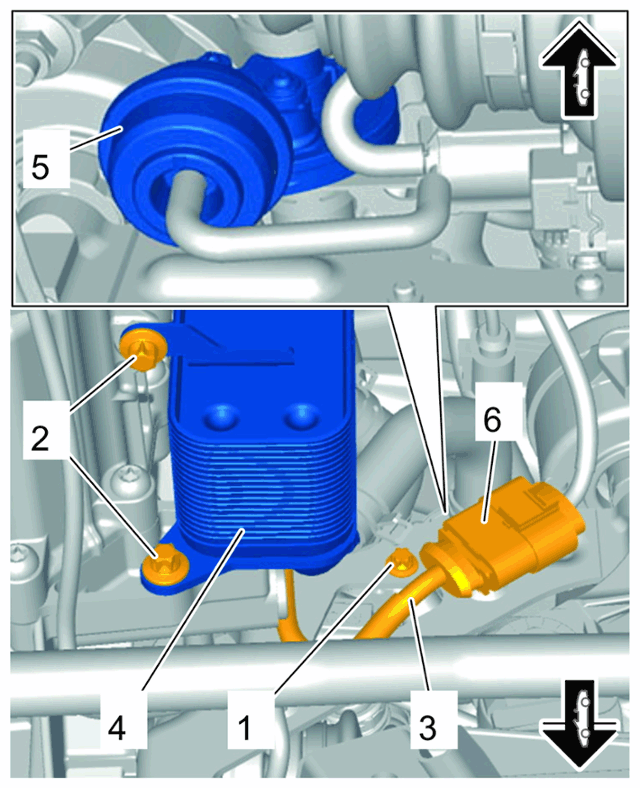

When removing the right transmission mount: Unclip electric wiring harness -3- at all fastening points of the gear support.
When removing the right transmission mount: Release and disconnect electric plug connection -6- .
When removing the right transmission mount: Unscrew and remove fastening screws -1 and 2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

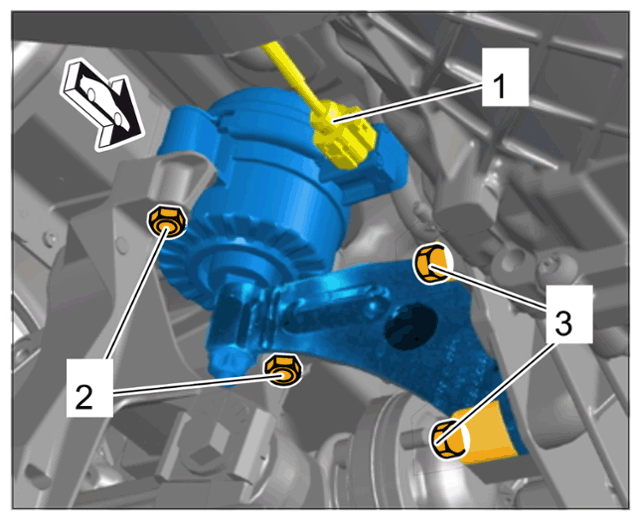

On vehicles with dynamic unit mounts: Release and disconnect electric plug connection -1- on the transmission mount.
Screw off fastening nuts -2- on the transmission mount.
Unscrew fastening screws -3- on the transmission.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

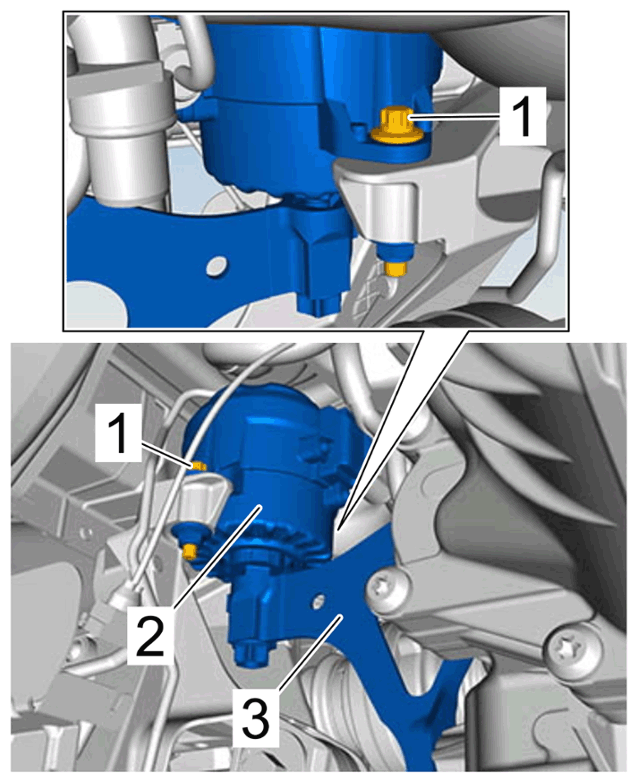

Lift up fastening screws -1- on the transmission mount -2- and remove transmission mount -2- and gear support -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
