WM, 343527 - Removing And Mounting Transmission: Tools

WARNING: This page is about a different variant/trim than selected.

Tool denomination	Type	Tool number	Image
electronic torque wrench from 2 - 100 Nm (1.5 - 74 ftlb.)	Special tool	> 9768	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

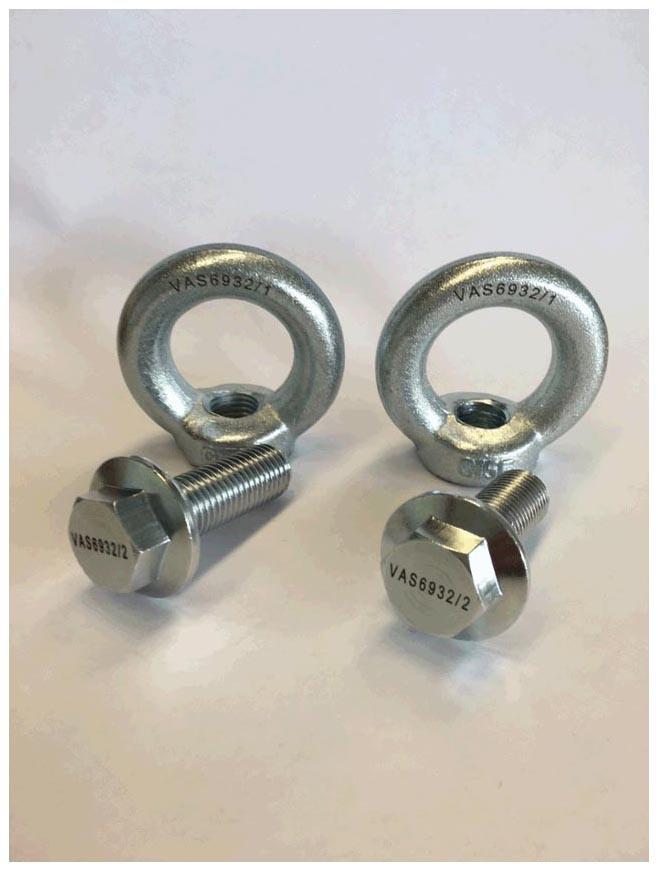

transport device	Vehicle-specific workshop equipment	> VAS 6932	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

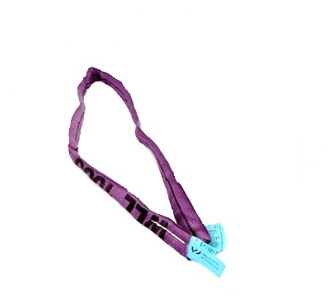

round sling	Vehicle-specific workshop equipment	> VAS 501 015	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
lifting tackle	VW tool	> 3033	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

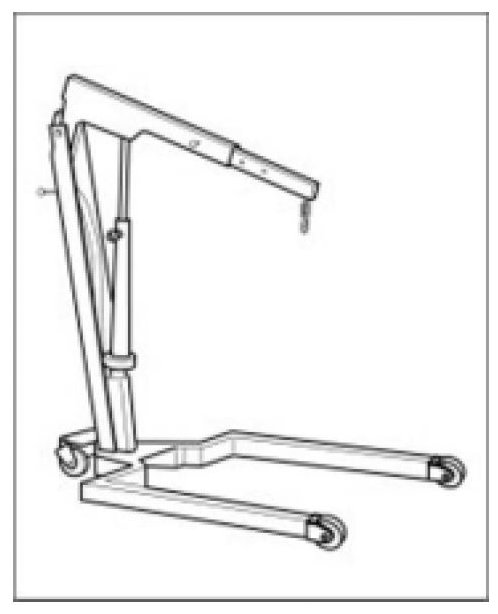

workshop crane	General workshop equipment	> VAS 6100	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
strapping belt	Special tool	> 9454	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

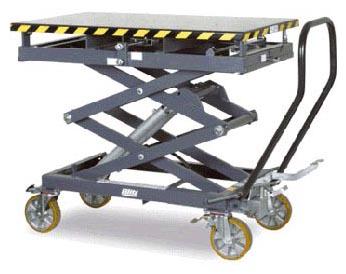

Master Gear unit elevating platform	Vehicle-specific workshop equipment	> VAS 6832	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

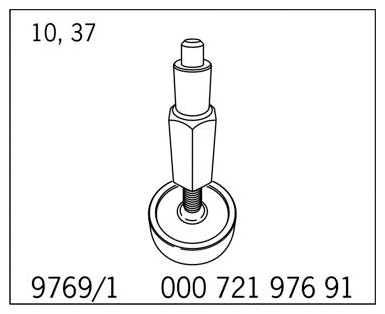

support	Special tool	> 9769/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Ring Socket Insert, E18	Vehicle-specific workshop equipment	> VAS 6953	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Torque wrench, 40-200 Nm (30- 148 ftlb.)	General workshop equipment	> V.A.G 1332	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

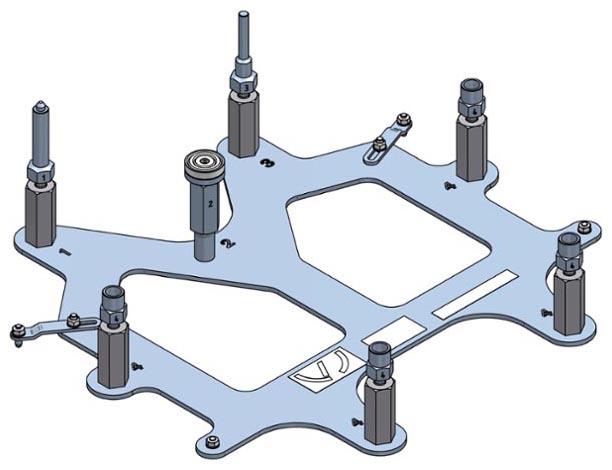

Assembly fixture - Boxster	Vehicle-specific workshop equipment	> VAS 6832/6	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
