Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Remove engine with transmission.
> 100119 REMOVING AND INSTALLING ENGINE .

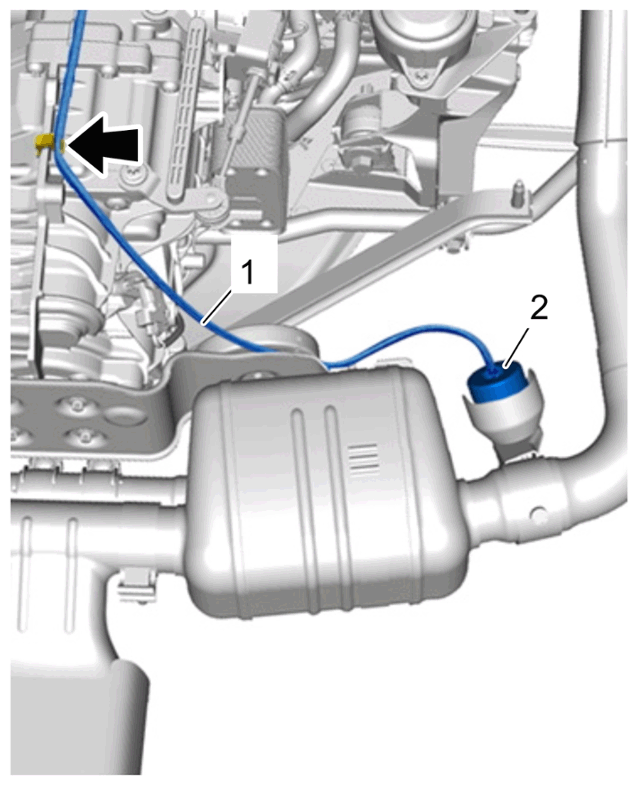

Vehicles with sports exhaust system: Pull off and unclip vacuum line -1- on exhaust flap control box -2- for the sports exhaust system -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove exhaust system -1- .

> 260119 REMOVING AND INSTALLING EXHAUST SYSTEM .

Get another person to help!

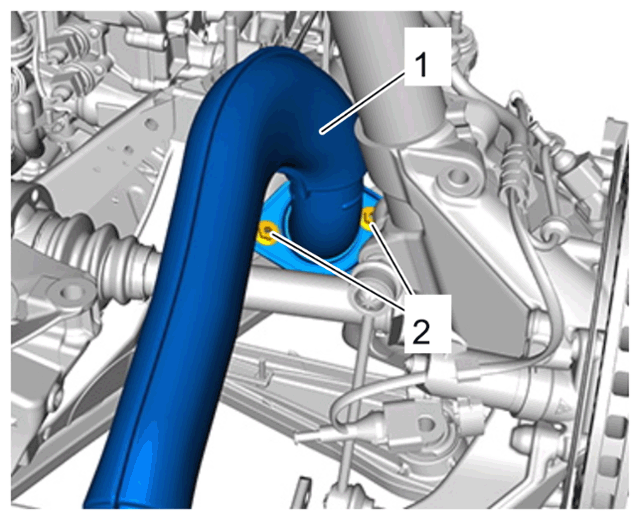

3.1 Loosen threaded joint for exhaust manifold flange at the left and right. Unscrew and replace M8 collar nuts -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

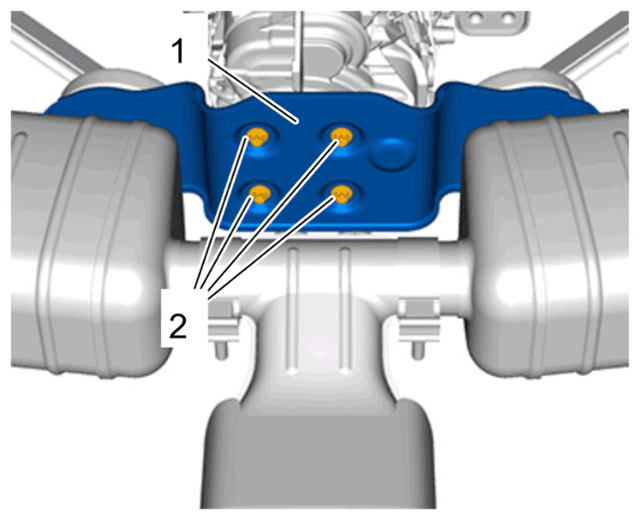

3.2 Loosen silencer holder -1- . Unscrew M8 screws -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3.3 Remove the exhaust system with the help of another person.

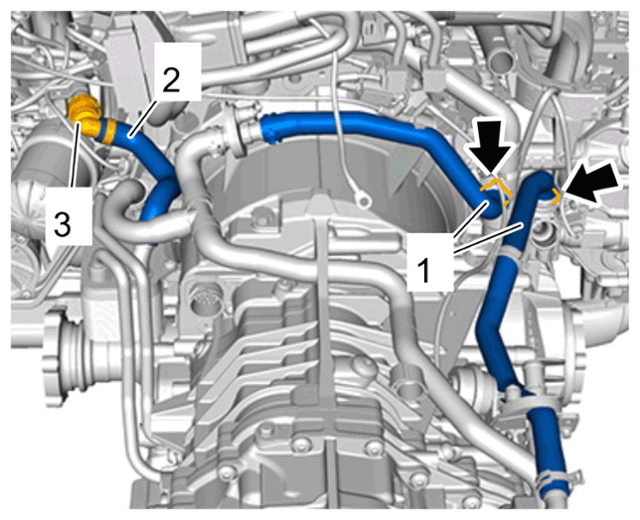

Disconnect coolant hoses -1 and 2- for transmission cooling.
1. 4.1 Loosen and disconnect plug-in coupling -3- on the left heat exchanger.
2. 4.2 Pull off spring clamps on the plug connections -Arrows- and disconnect coolant hoses.
3. 4.3 Check O-rings and replace them if necessary.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip and pull off vacuum line for transmission control valve.

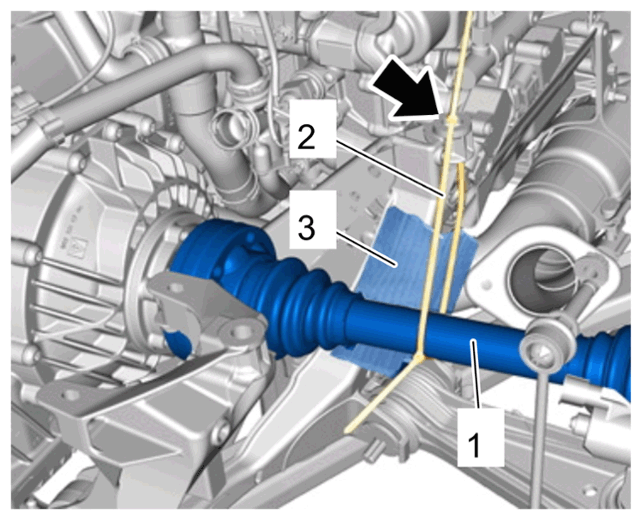

Secure drive shafts -1- with tie-wraps -2- on the rear-axle carrier side section -Arrow- .
1. 6.1 Place a protective base -3- between the drive shafts and chassis components!
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

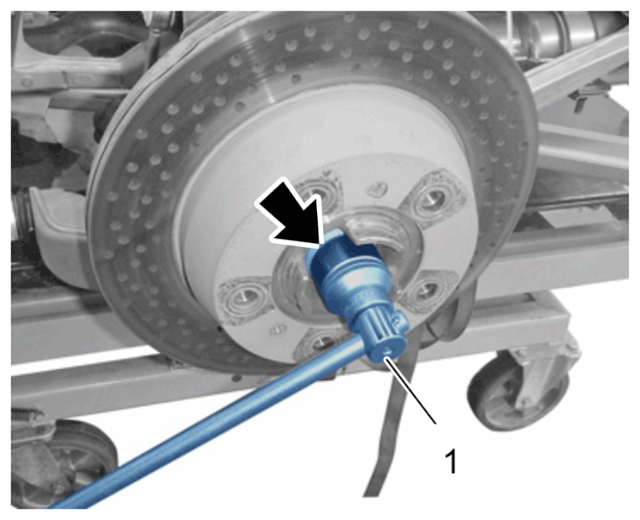

Loosen drive shafts on the transmission.
1. 7.1 Counter at the wheel hub nut -Arrow- using tool -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

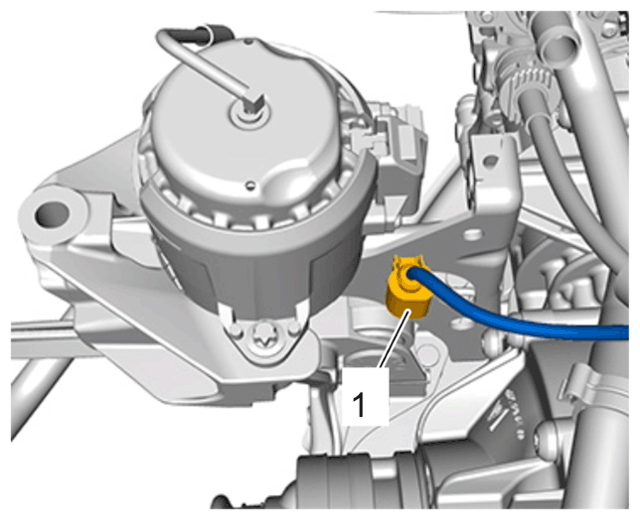

Unclip central connector -1- on transmission mount bracket.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

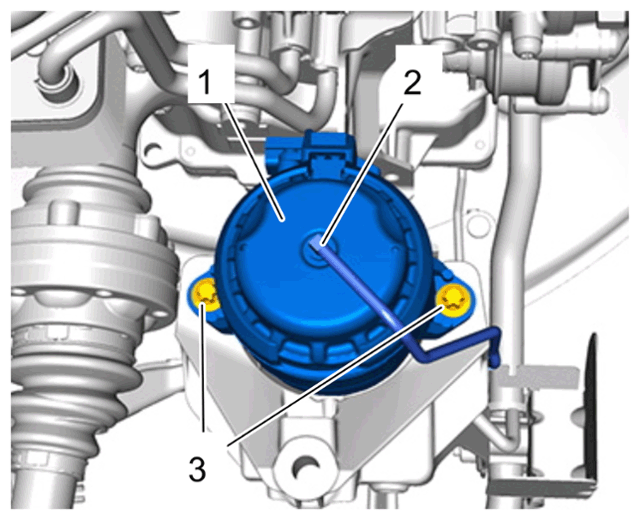

Loosen transmission mount -1- on the rear-axle carrier side section.
1. 9.1 Disconnect vacuum line -2- .
2. 9.2 Unscrew M8 screws -3- on the transmission mounts.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

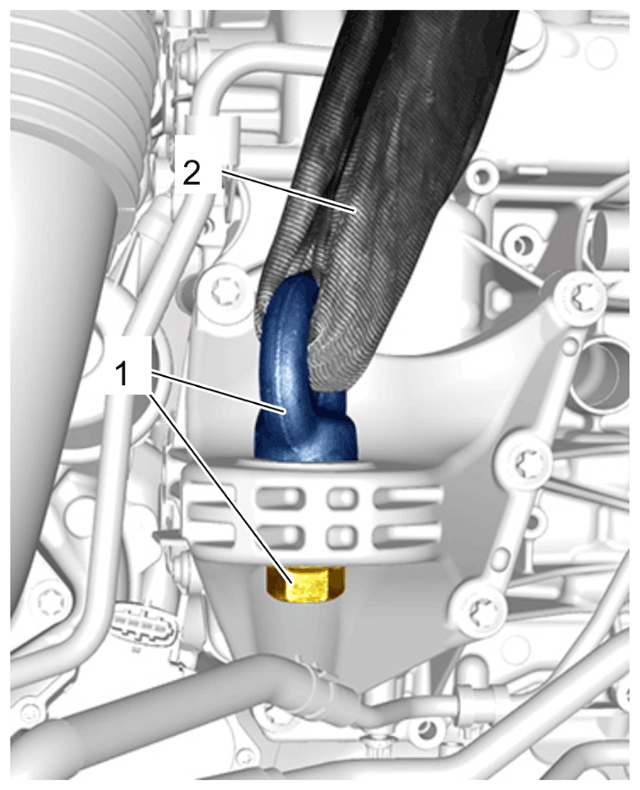

Fit special tool > VAS 6932 - transport device-1- on the engine mounts.
1. 10.1 Guide > VAS 501 015 - round sling-2- through the transport devices.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

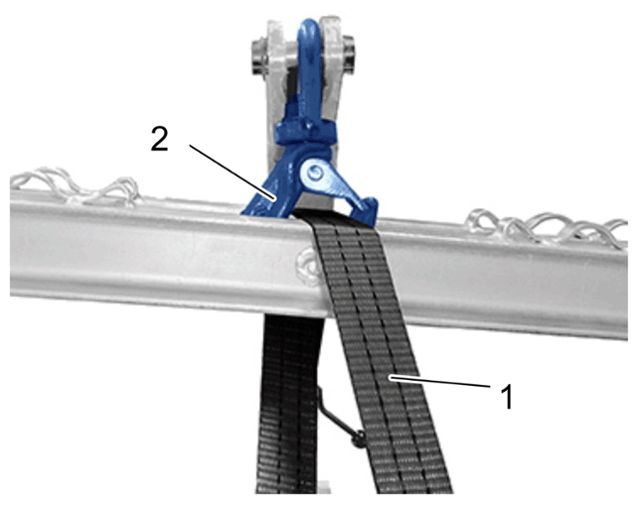

Guide one tensioning strap -1- over the > 3033 - lifting tackle and workshop crane spring hook -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

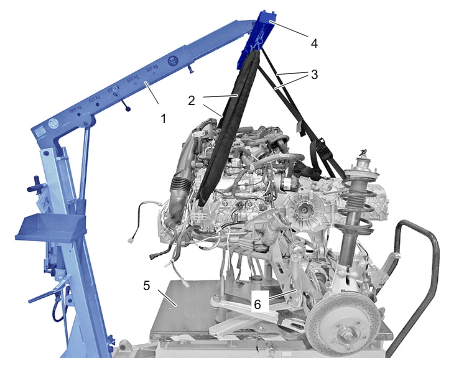

Lift engine with transmission from the rear axle using > VAS 6100 - workshop crane-1- and > 3033 - lifting tackle-4- .
Get another person to help with this step.
1. 12.1 Engage > VAS 501 015 - round sling-2- in the spring hooks of the lifting tackle at the left and right.
2. 12.2 Secure the transmission on the lifting tackle with > 9454 - strapping belt-3- .
3. 12.3 Lift engine with transmission off the rear-axle module.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Workshop crane VAS 6100
2. Round sling VAS 5010 015
3. Tensioning strap/strapping belt 9454
4. Lifting tackle 3033
5. Master Gear unit elevating platform VAS 6832
6. Rear-axle module
Lift rear-axle module off the > VAS 6832 - Master Gear unit elevating platform and set it down on a wooden pallet.
Get another person to help with this step.
Position engine with transmission on the unit elevating platform.
Get another person to help with this step.

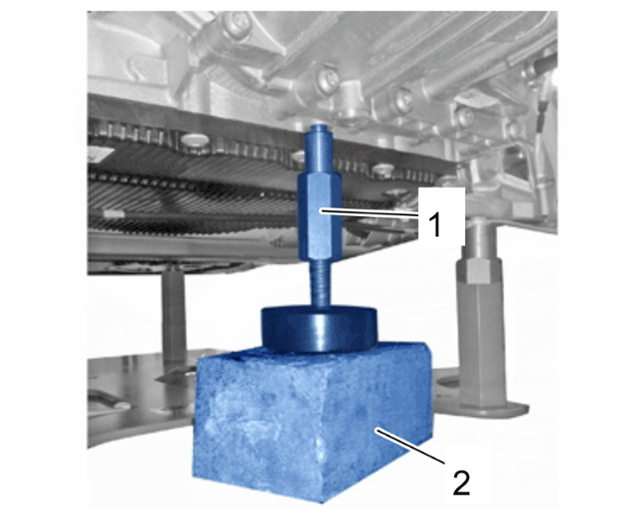

1. 14.1 Support transmission using > 9769/1 - support-1- and wooden block (as a base) -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

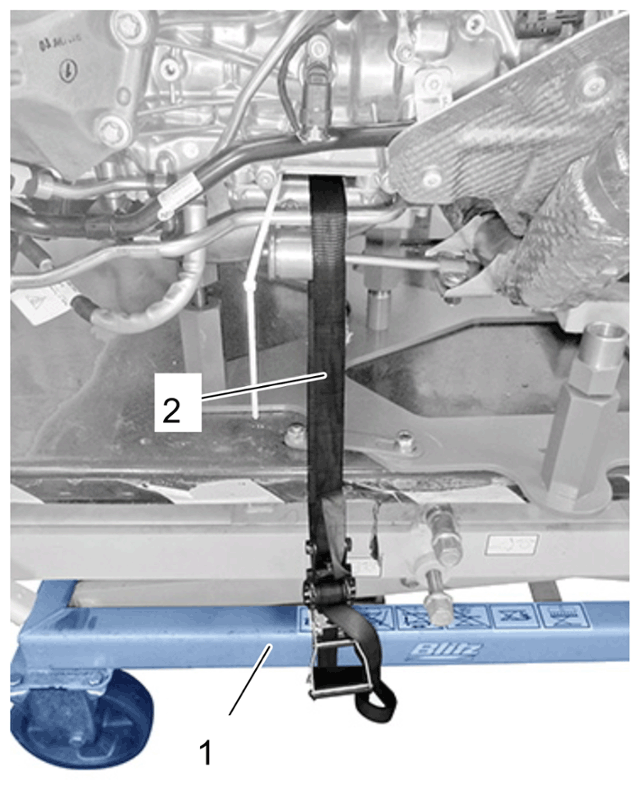

Secure the engine with a > 9454 - strapping belt-2- on the unit elevating platform -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
