Removing Inductive Speed Sensor

WARNING: This page is about a different variant/trim than selected.

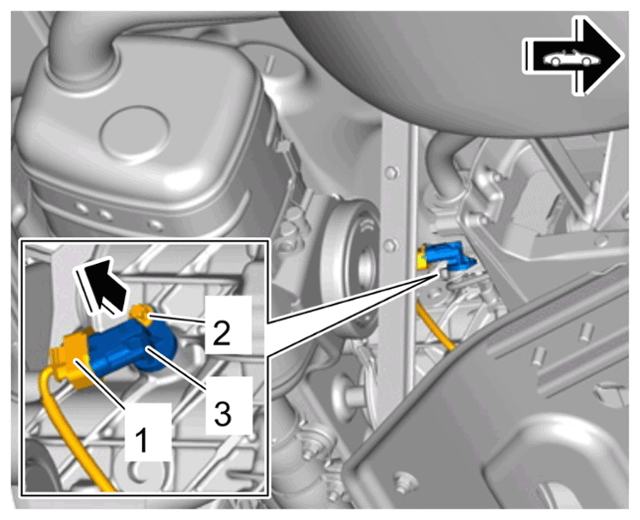

  1. Release and disconnect electric plug connection -1-  .
  2. Unscrew and remove fastening screw -2-  .
  3. Carefully pull inductive speed sensor -3-  out of the transmission housing -arrow-  . Carefully loosen inductive speed sensor -3-  using a suitable tool if necessary.
G14946177Courtesy of PORSCHE CARS NORTH AMERICA, INC.
