Removing Neutral Position Sensor, Mt

WARNING: This page is about a different variant/trim than selected.

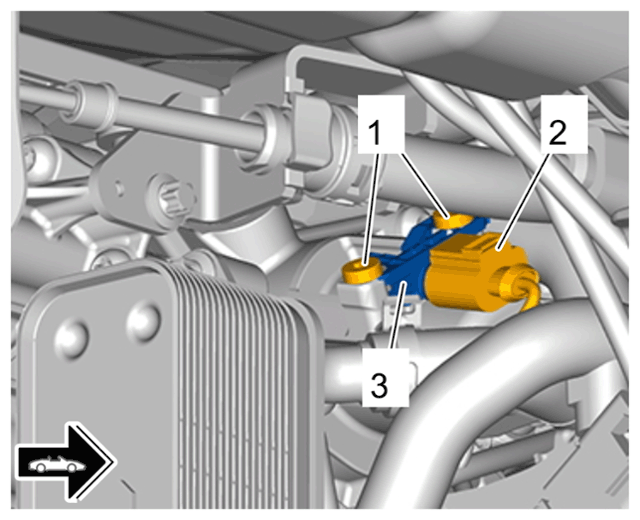

  1. Unscrew fastening screws -1-  .
  2. Release and disconnect electric plug connection -2-  .
  3. Remove neutral position sensor, MT -3-  .
G14946174Courtesy of PORSCHE CARS NORTH AMERICA, INC.
