Removing And Installing Gearshift Bracket
WARNING: This page is about a different variant/trim than selected.

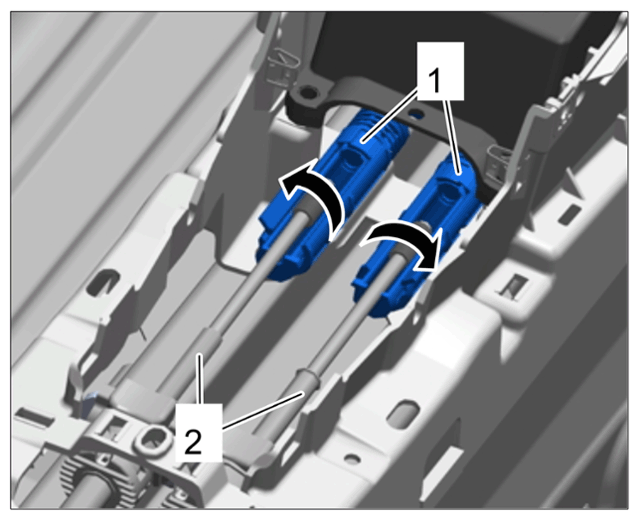

- Release -1-
bayonet locks -Arrows-
and unclip shift cable and selector cable -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

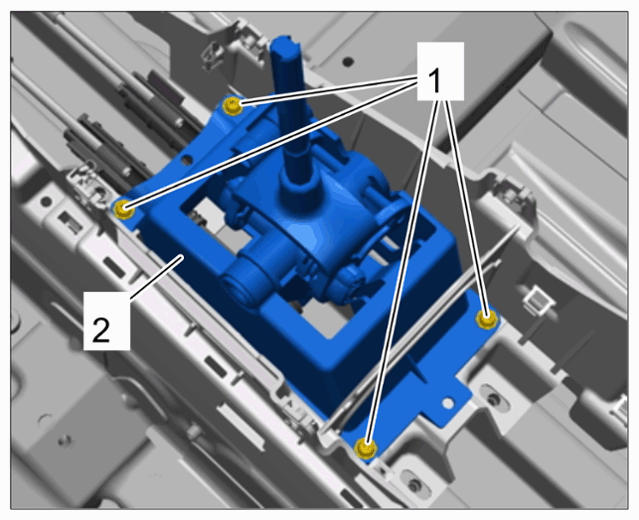

- Unscrew and remove screws -1-
and remove shift console -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Installation is performed in reverse order to removal.
Fasten screws with > Tightening torque 8 Nm (5.9 ftlb.)
.
