Removing And Installing Shift-Lever Knob

WARNING: This page is about a different variant/trim than selected.

Information

The shift-lever knob and bellows form one unit and cannot be removed separately.

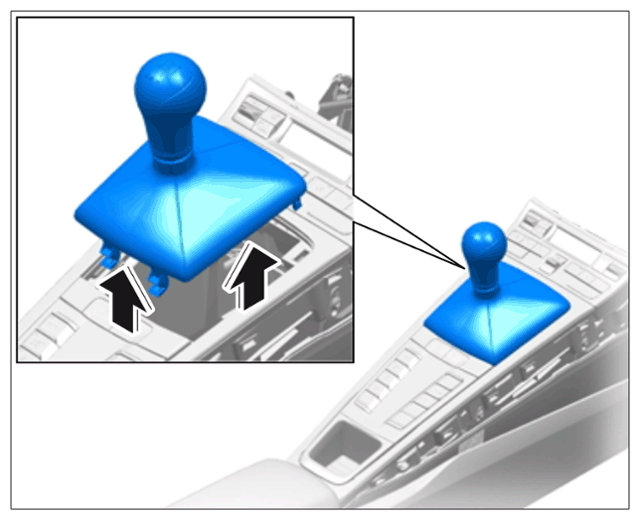

Unclip retaining frame on bellows using an assembly wedge. > Unclipping retaining frame on bellows

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

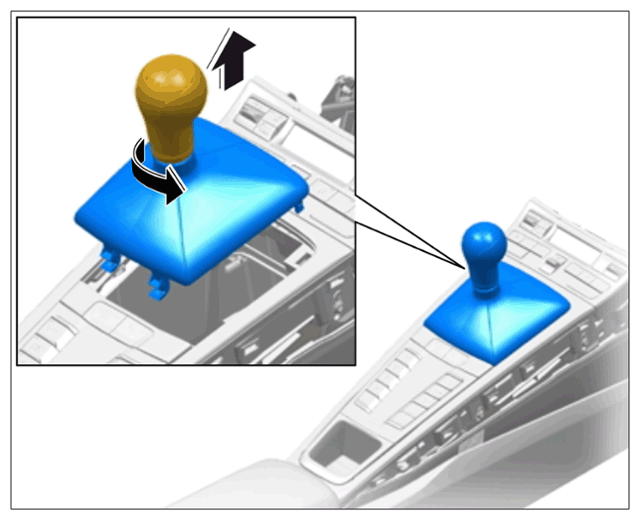

Turn bellows anti-clockwise and remove shift-lever knob and bellows. > Removing shift-lever knob and bellows

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation is performed in reverse order.
