Removing Camshaft Sensor

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

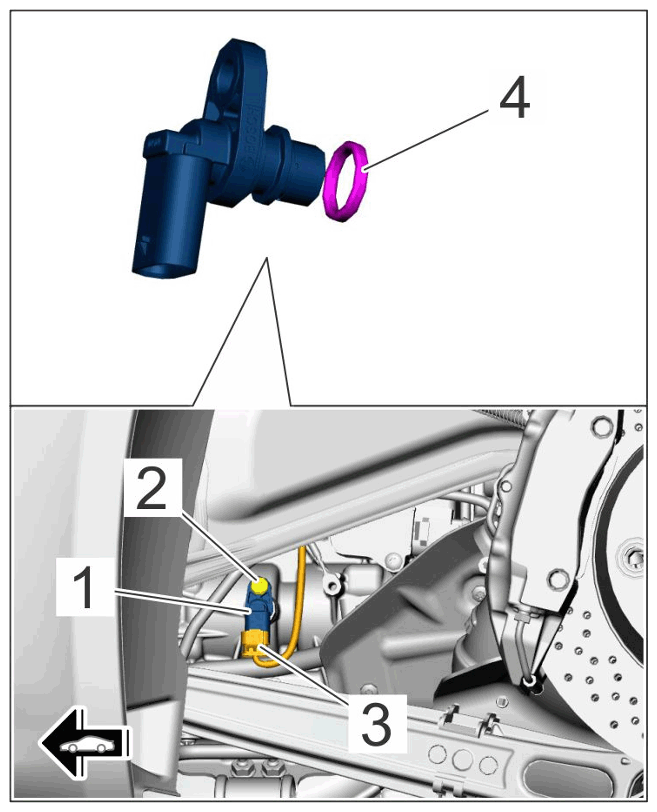

  1. Remove camshaft sensor -1  -.
    1. 1.1 Unscrew screw -2  -.
    2. 1.2 Release and disconnect cable plug -3  -.
    3. 1.3 Replace O-ring -4  -.
    G14945470Courtesy of PORSCHE CARS NORTH AMERICA, INC.
