Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Spreader device (actuator) on wheel bearing housing | Arrows: M8 x 38 Replace screw |
initial tightening | 10 Nm (7.4 ftlb.) | ||
|

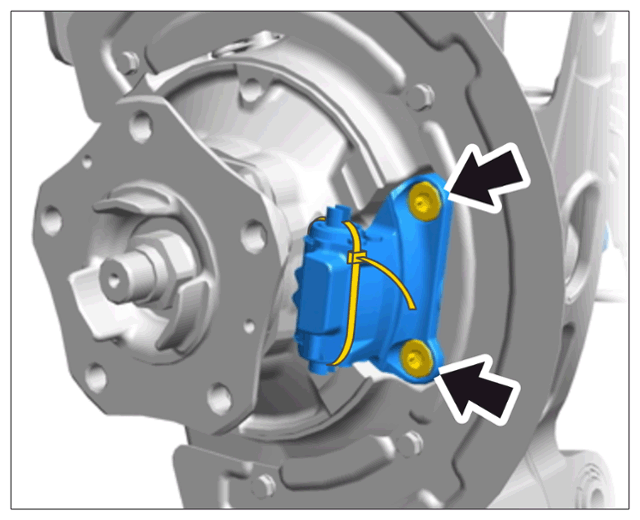

Spreader device mounting (example) |
|||||
| Spreader device (actuator) on wheel bearing housing | Arrows: M8x38 Replace screw |
Final tightening | + 60> | ||
|
Spreader device mounting (example) |
|||||
