Removing Spreader Device (Actuator)
WARNING: This page is about a different variant/trim than selected.
Information
The spreader device (actuator) is fitted on the rear-axle wheel bearing housing. It is the servo motor for the electric parking brake (EPB)
and spreads the parking-brake shoes when actuated.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

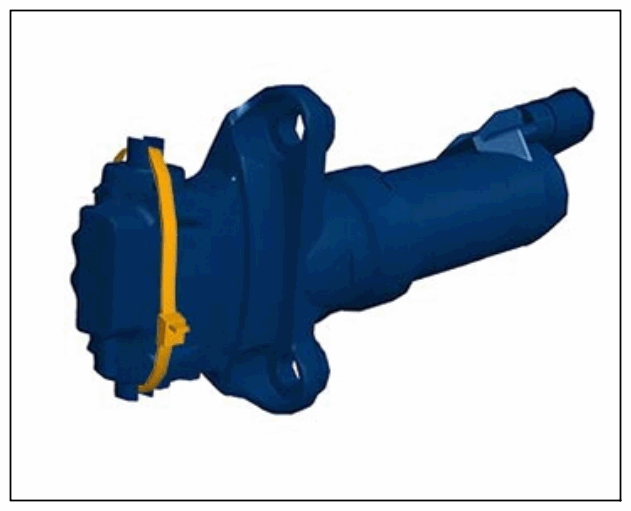

Actuator
- Actuator
- Tie-wrap (prevents turning]

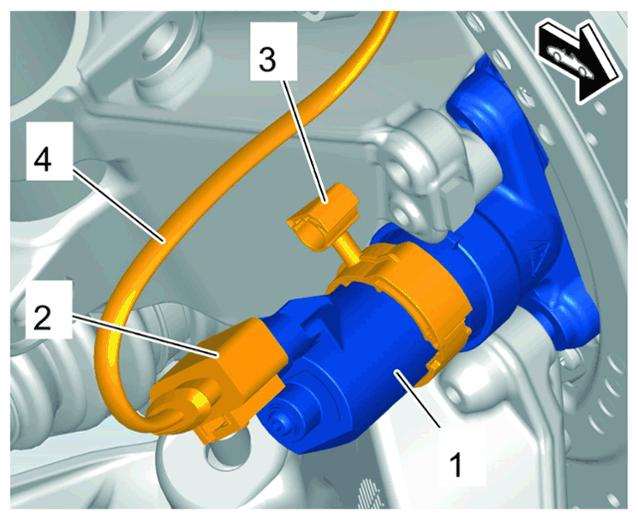

- Release and disconnect electric plug connection -2-
on the actuator -1-
.
- Unclip electric wire harness -4-
from the retaining clip -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Actuator

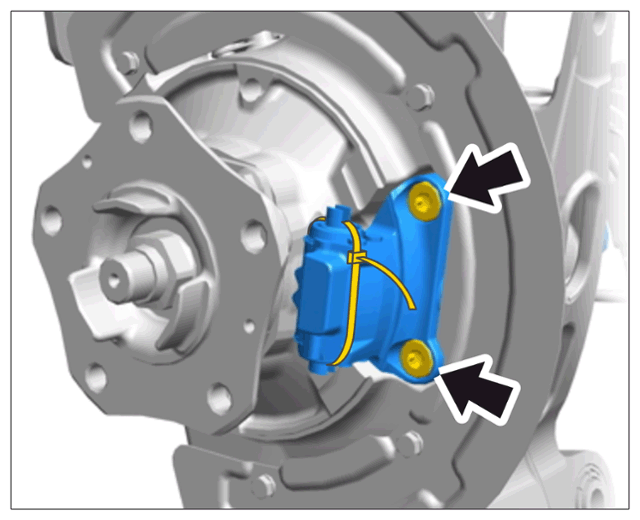

- Unscrew screws -Arrows-
for actuator.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Mounting for actuator
- Unscrew screws for rear brake cover plate.
- Remove actuator
- 5.1
Turn the brake cover plate so that the actuator can be removed.
- 5.2

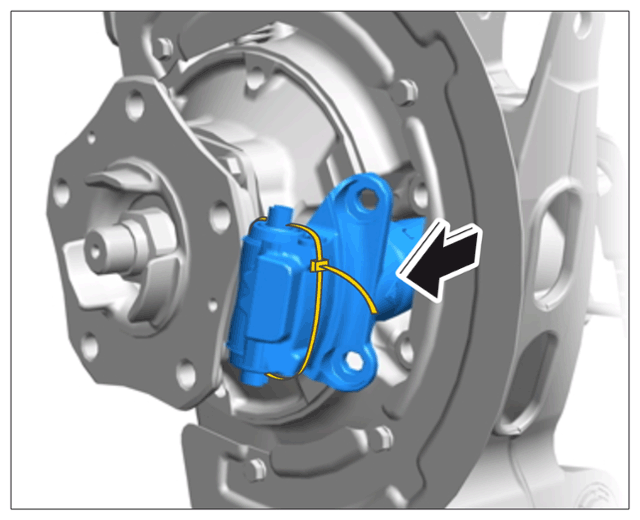

Remove actuator -Arrow-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing actuator
