Removing Parking-Brake Shoes

WARNING: This page is about a different variant/trim than selected.

Loosen adjustment device > Adjustment device for parking-brake shoes using a suitable tool (e.g a screwdriver).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

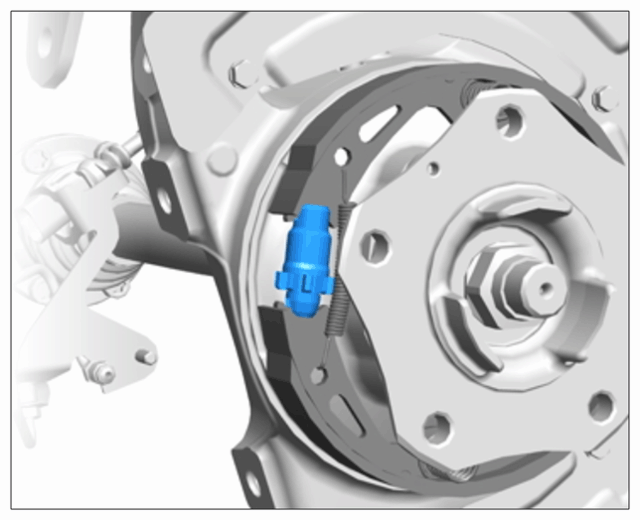

Adjustment device for parking-brake shoes
Mark the parking-brake shoes and adjustment device according to their installation position.
WARNING:
Preloaded or pressurized components
- Risk of injury (e.g. crushing or bruising) when removing and installing springs.
  - Do not reach into the danger area.
  - Relieve the tension on components before starting work.
  - Secure components to prevent them from loosening suddenly.
  - Wear protective gloves and goggles.
  - Be very careful when working on the brake system.

Remove parking-brake shoes -1- .

3.1 Remove compression springs -2- .
1. 3.1.1 Press compression springs -2- together using a suitable tool (e.g. a Philips screwdriver) and a considerable amount of force and turn them 90 degrees clockwise.
3.2 Disengage tension springs -4 and 5-.

3.3 Remove parking-brake shoes -1- using adjustment device -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

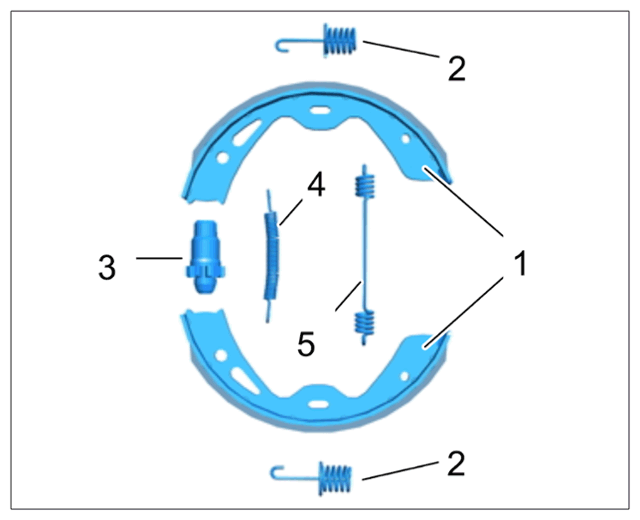

Removing brake shoes

Secure actuator -1- for EPB (electric parking brake] with a tie-wrap -2- to prevent it from turning.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

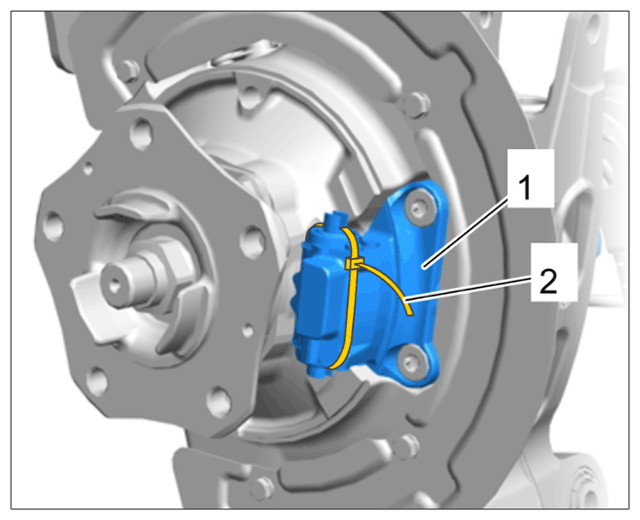

Actuator (servo motor) for parking brake secured with tie-wrap
