Removing And Installing Parking Brake Actuator

WARNING: This page is about a different variant/trim than selected.
  1. Release retaining clips -1-  and remove parking brake actuator -arrow B-  .

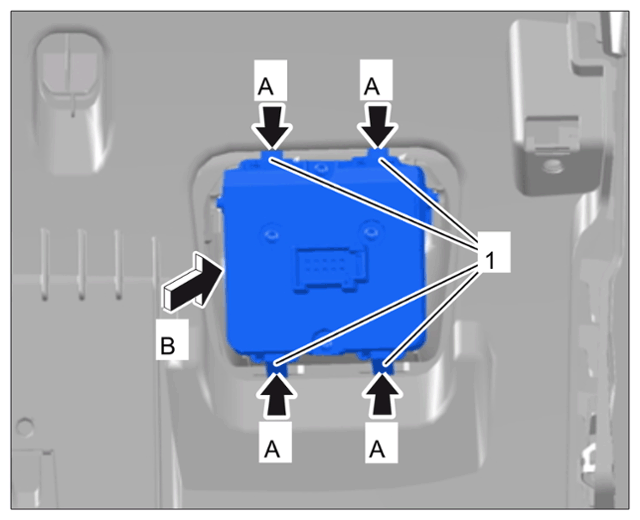

    G14947309Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing actuator for parking brake

  2. Installation is performed in reverse order.
