Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | De- | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Brake disc to wheel hub (front and rear axle) | M6 | Tightening torque | 5 Nm (3.7 ftlb.) | ||
|

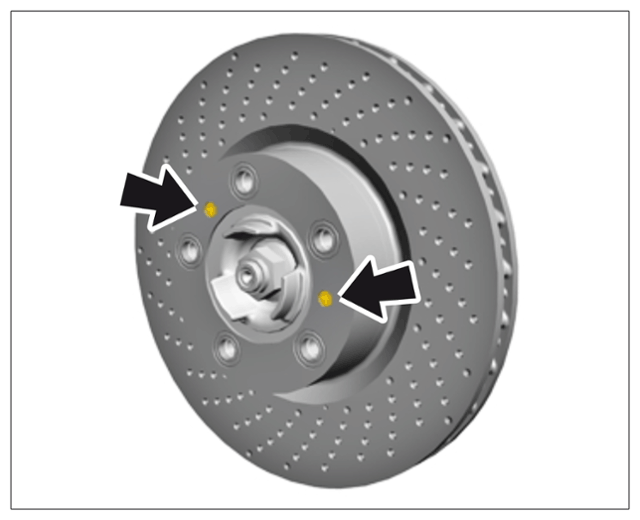

Brake disc screws |
|||||
| Brake calliper to wheel bearing housing, front and rear axle for re-using screws (PCCB and grey cast iron brakes) | M12 x 1.5/Different screw length on front and rear axle (see allocation in PET). | Tightening torque | 85 Nm (62.7 ftlb.) | ||
|

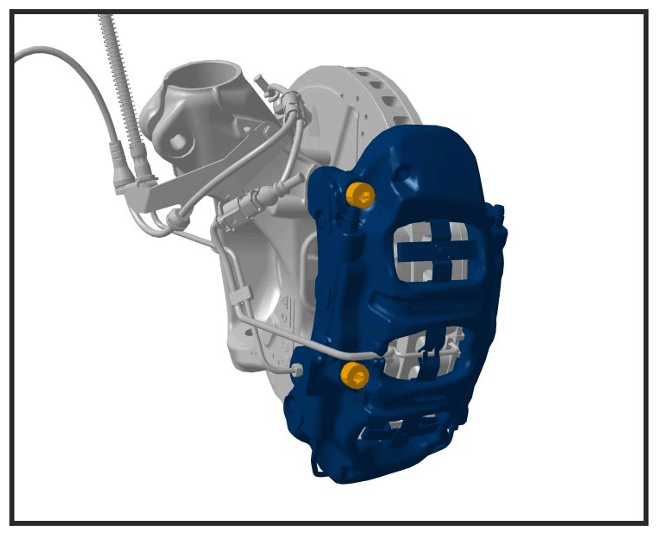

Brake calliper to wheel bearing housing (in picture: front axle) |
|||||
| Holder to wheel bearing housing | Screw with washer assembly, M6 x 16 | Tightening torque | 10 Nm (7.5 ftlb.) | ||
