Causes Of Build-Up On PCCB Brake Discs

The coating on the PCCB brake discs arises as a result of a high load and high temperatures, for example on a racing circuit. Check the following in such cases:

• Ventilation (brake cooling): all components are present, secured correctly and undamaged.
• Brake pad quality: If the vehicle is used for race-track driving, use appropriate brake pads.
• The perforation bores in the brake discs must not be blocked. Unblock them if necessary. > Bores (perforations) in brake disc friction surface

NOTIFICATION

Work cannot be carried out on the bores in the brake disc friction surface

• Damage to brake discs
  • Clean the bores on PCCB brake discs with high-pressure cleaning equipment if necessary. Observe the relevant environmental and safety regulations.
  • Do not machine the bores. Drilling or counter-sinking is not permitted.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

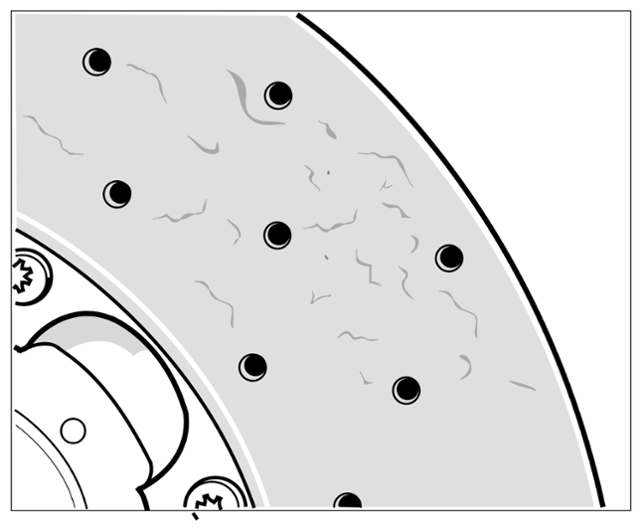

Bores (perforations) in brake disc friction surface

If there is a build-up, the brake discs can still be used provided all wear criteria for the brake discs are OK.
