Checking Grey Cast-Iron Brake Discs - Evaluating Cracks

Information

Crack assessment:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

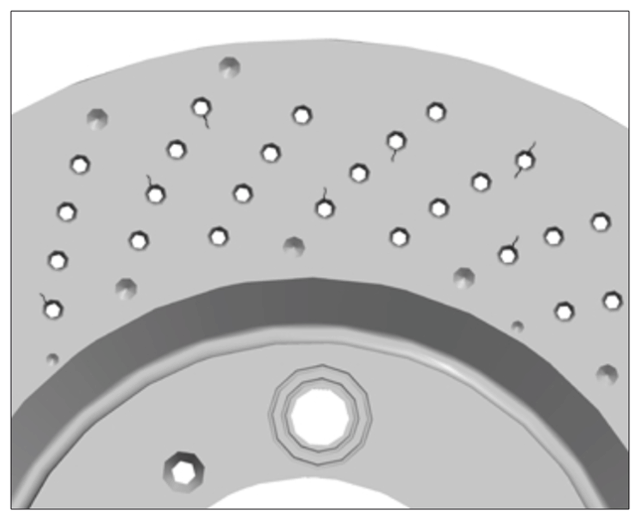

Perforation crack length is small (less than 5 mm)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

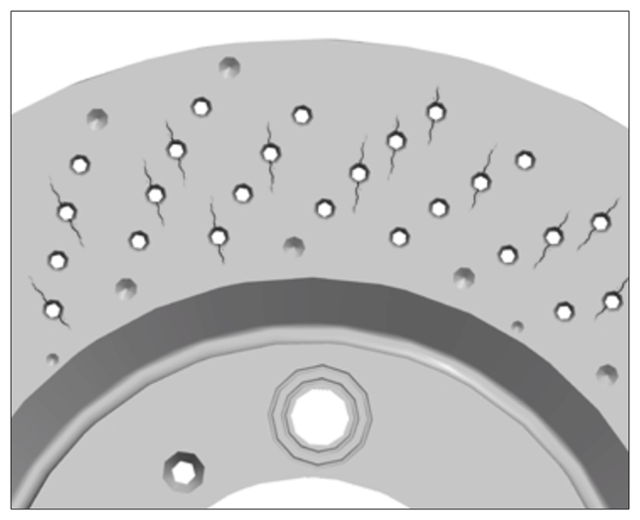

Perforation crack length is too big (greater than 5 mm)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

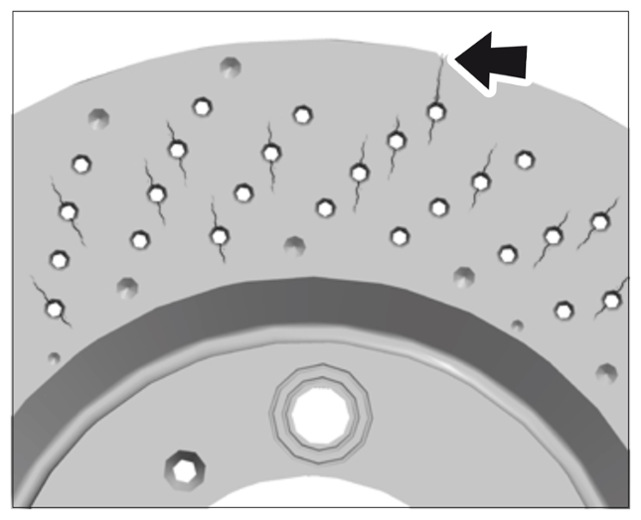

Friction plate rim damaged

• Perforation crack length is small (less than 5 mm): No replacement necessary (the maximum permitted perforation crack length is 5 mm)  > Perforation crack length is small (less than 5 mm)
• Some perforation cracks are over 7 mm long: Brake disc must be replaced.  > Perforation crack length is too big (greater than 5 mm)
• Brake disc with cracked friction plate rim: Brake disc must be replaced!  > Friction plate rim damaged

1. Perform visual inspection and measure crack length using a suitable tool if necessary.
