General Warning Notes

WARNING: This page is about a different variant/trim than selected.

WARNING: Installation of brake pads with the wrong brake pad quality

Longer braking distance
More wear on brake pads
- Only use the type-specific brake pads listed in the Porsche Parts Information.
- Replace brake pads on both sides of axle when the brake pad wear indicator light comes on.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

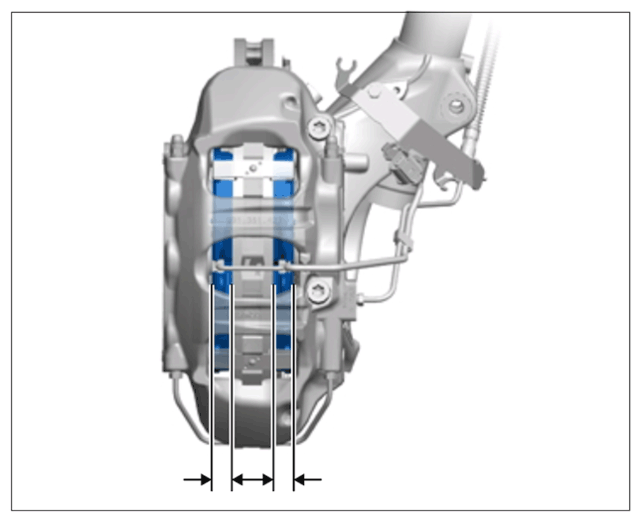

Checking thickness of brake pads

If brake pad wear is indicated by the warning light, the warning contact (sender including wire and plug connection) must be replaced.
Replacement of the warning contact can be avoided by replacing the brake pads before a pad thickness -Arrows- of 2.5 mm is reached.
Warning contacts must be replaced if the core of the wire is worn.
If only the plastic part of the warning contact is worn, the warning contacts can be re-used.
