Preliminary Work
WARNING: This page is about a different variant/trim than selected.
NOTIFICATION
Removing/fitting wheels
- Risk of damage to (ceramic) brake discs
- Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.
- Remove wheel.
> > 440519 Removing and installing wheel

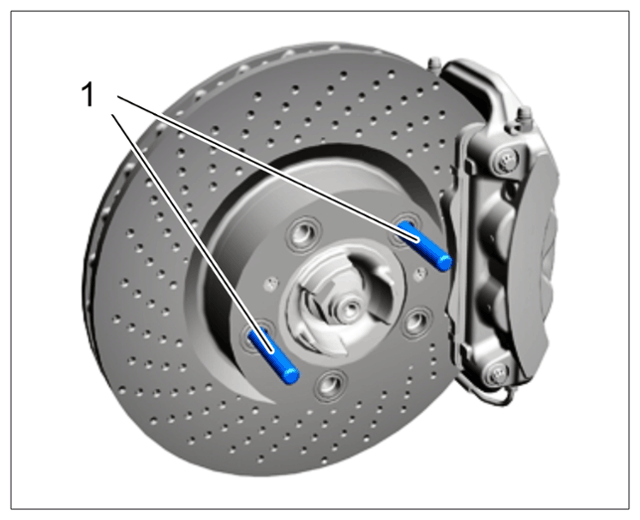

For vehicles with PCCB : Use assembly aids (two assembly pins) -1- .
Wheel assembly pins (shown as an example)
