Inspection During Intermediate Maintenance
WARNING: This page is about a different variant/trim than selected.
- Visually inspect the brake pads for wear.
- 1.1 Only when changing brake fluid at the same time:
Perform visual inspection with wheels removed.
> 440519 Removing and installing wheel
Information

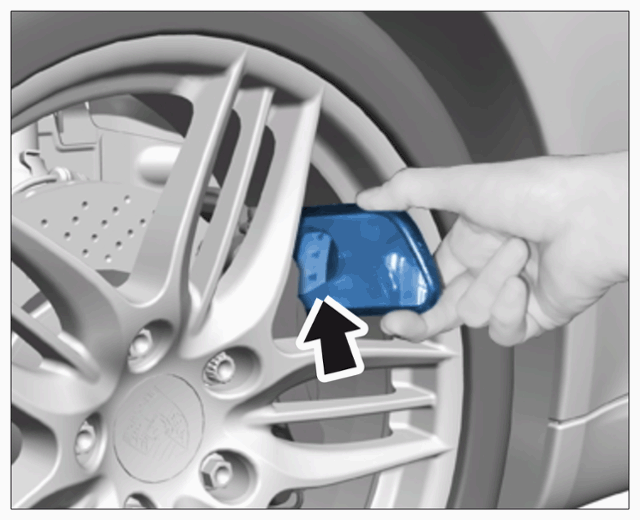

A mirror can be used as an aid -arrow- .
Checking brake pads
- 1.2 Outside of brake pad: Perform visual inspection through the cut-outs in the rim.
- 1.3 Inside of brake pad: Perform visual inspection from below with the vehicle raised.
- 1.1 Only when changing brake fluid at the same time:
Perform visual inspection with wheels removed.
