Installing Brake Pedal

Information

The pedal shaft must not be greased during installation!

The cover on the pedal shaft is coded. This means that the pedal shaft can only be fitted correctly in one specific position.

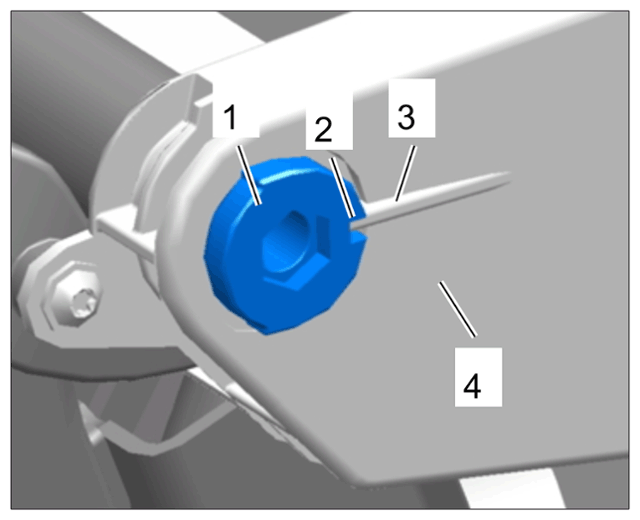

When sliding in the brake pedal shaft -1-  , make sure that the cut-out -2-  on the brake pedal shaft fits into the guide -3-  on the holder -4-  .

This is the only way to ensure that the brake pedal shaft is installed at the correct position and will not turn.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Positioning pedal shaft

1. Installation is performed in reverse order to removal.

   Fit fastening nuts securing mounting saddle to the body and tighten to > Tightening torque 23 Nm (17 ftlb.)

   Fit fastening screws securing brake booster to pedal module and tighten to > Tightening torque 23 Nm (17 ftlb.)

   Fit fastening screws securing mounting saddle to the body and tighten to > Tightening torque 23 Nm (17 ftlb.)
