Technical Background

WARNING: This page is about a different variant/trim than selected.

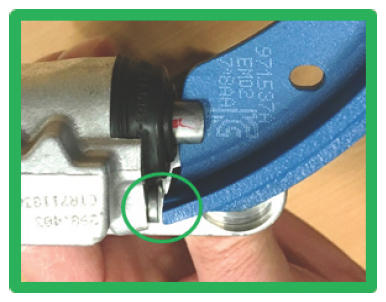

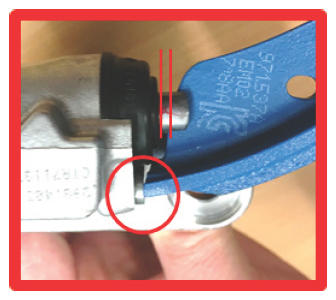

Parking brake shoes were manufactured that were too long on one end. This resulted in not enough clearance for the shoe. A visible gap will exist with the new improved shoe, as seen in the photo on the right.

G13956796Courtesy of PORSCHE CARS NORTH AMERICA, INC.
G13956787Courtesy of PORSCHE CARS NORTH AMERICA, INC.
