Removing Spring Strut Locking Devices

Information

• The wheels need not be removed!

1. Lift the vehicle (wheels on the front axle must be free).

   > 4X00IN LIFTING THE VEHICLE

2. Pull down the bellows at both ends of the pre-fitted red plastic tab -arrow-  .
3. Unclip the 3  lock blocks -1-  from the piston rod one after the other.

   The upper lock block is obscured by the spring strut mount and is therefore quite easy to miss.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

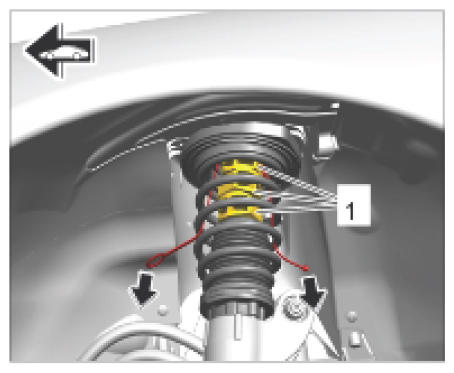

   Removing spring strut locking devices

4. Remove the red plastic tab from the piston rod.
5. Push the bellows back up by hand.
6. Lower the vehicle.
