Removing Vacuum Pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

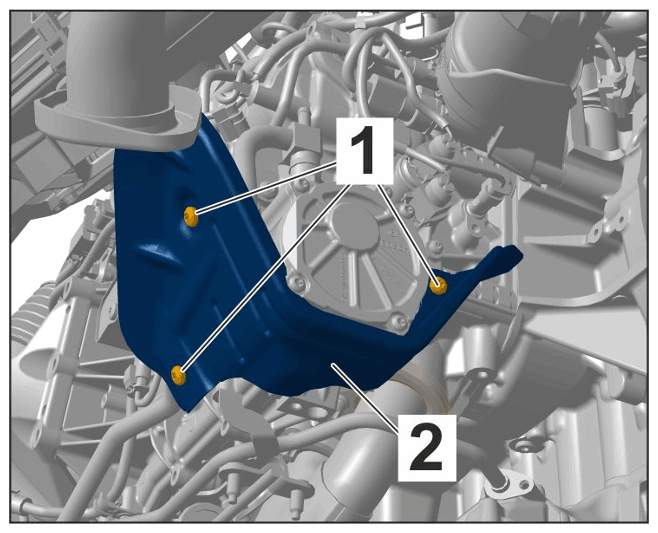

Mounting for heat shield

1. 1.1  Unscrew fastening screws -1-  and remove heat shield.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

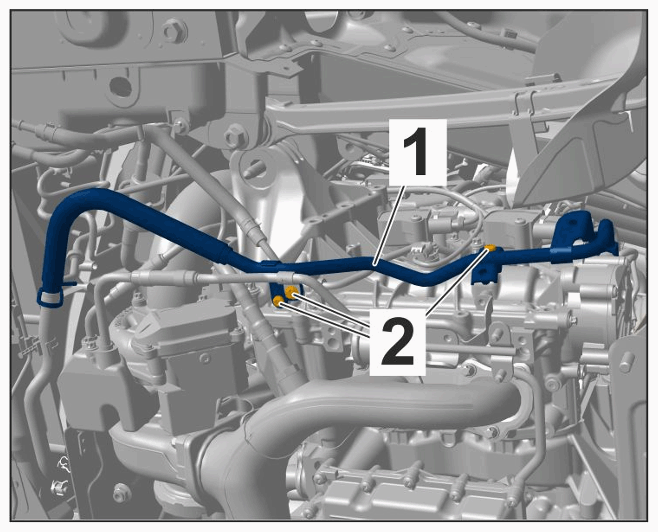

Mounting for vacuum line

1. 2.1  Unscrew fastening screws -2-  .
2. 2.2  Unscrew fastening screw -3-  using > 9824 - fexible-head socket wrench, a/f 8  and > 9824/2 - Torx Micro Bit T30  and pull the vacuum line -1-  out of the vacuum pump -arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

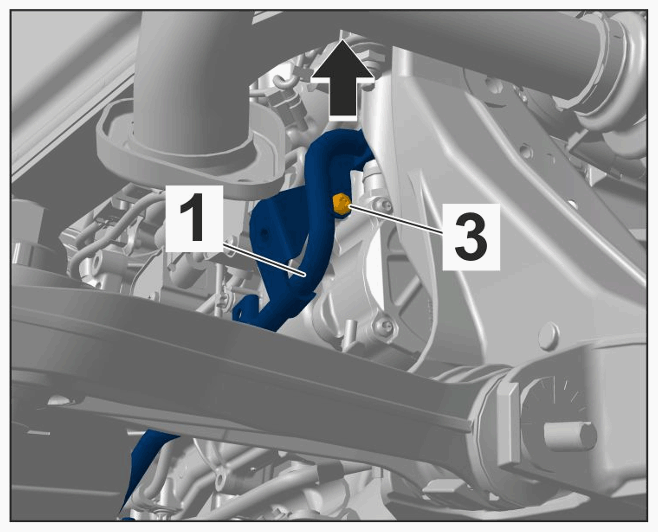

Pulling vacuum line out of vacuum pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

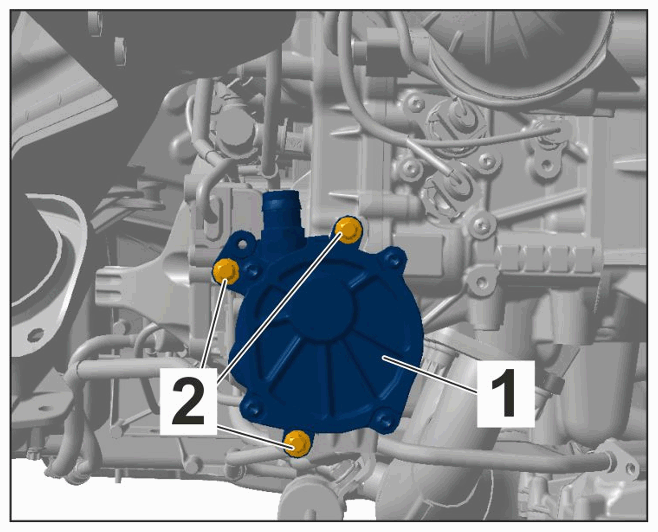

Mounting for vacuum pump

1. 3.1  Unscrew fastening screws -2-  and carefully pull off the vacuum pump.
