Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Brake pipes to brake calliper (front and rear axle) | M10x 1 | Tightening torque | 16 Nm (11.8 ftlb.) | ||
|

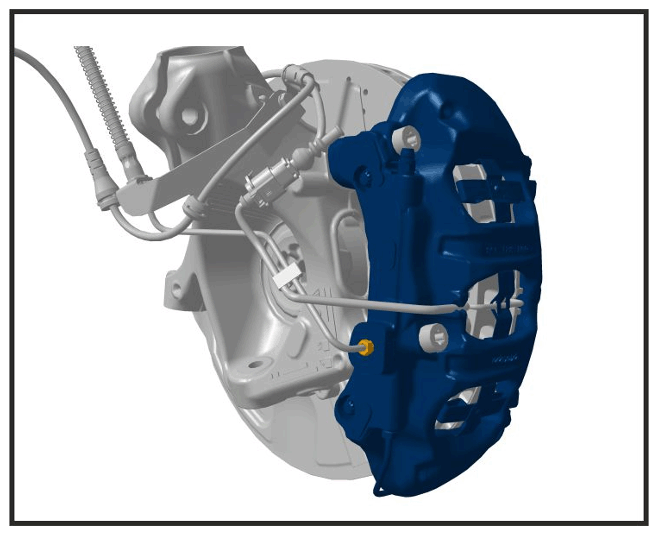

Brake pipe to brake calliper (in picture: front axle) |
|||||
| Brake calliper to wheel bearing housing, front and rear axle for re-using screws (PCCB and grey cast iron brakes) | M12x 1.5/Different screw length on front and rear axle (see allocation in PET). | Tightening torque | 85 Nm (62.7 ftlb.) | ||
|

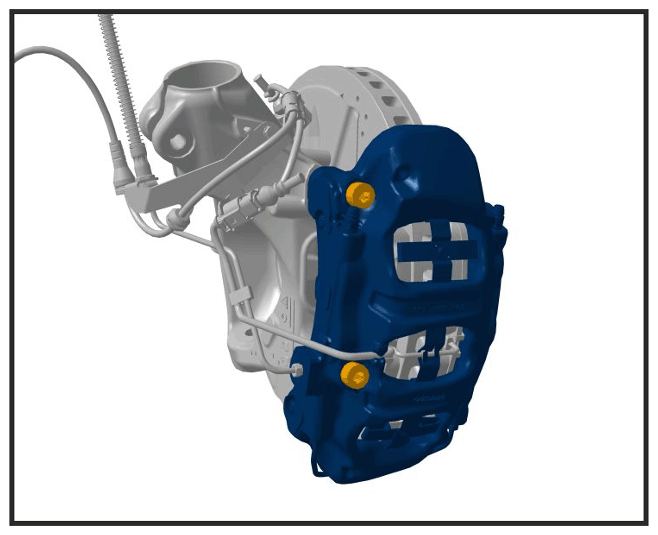

Brake calliper to wheel bearing housing (in picture: font axle) |
|||||
| Holder to wheel bearing housing | Screw washer assembly, M6 x 16 | Tightening torque | 10 Nm (7.5 ftlb.) |
