Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

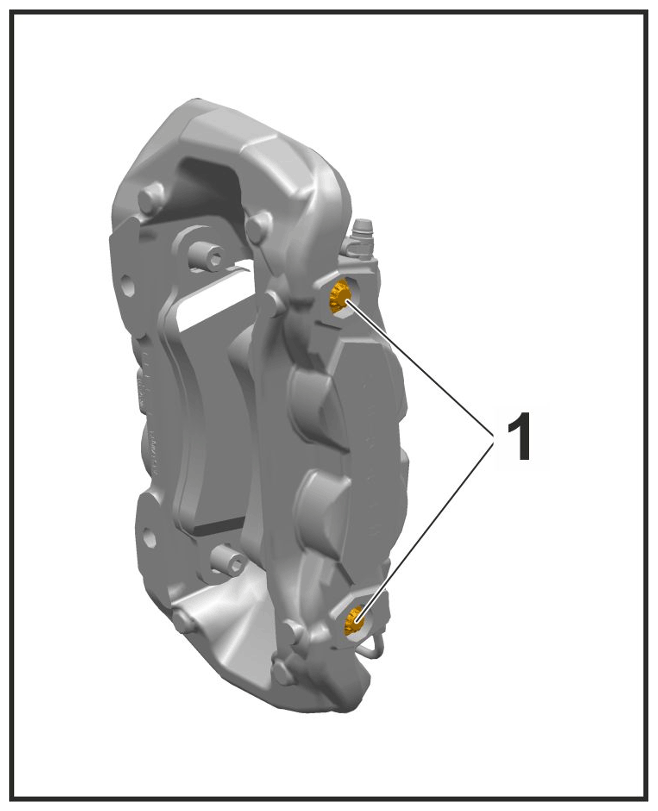

| Brake calliper screws on pad retaining pin | Item 1: The brake calliper screws may only be replaced in the event of a complaint (corrosion)/replace screws after removal | Initial tightening | 10 Nm (7.4 ftlb.) | ||
|
Brake calliper screw on pad retaining pin |
|||||
| Brake calliper screws on pad retaining pin | Item 1: The brake calliper screws may only be replaced in the event of a complaint (corrosion)/replace screws after every removal! | Final tightening | + 30> | + 4> | |
|
Brake calliper screws on pad retaining pin |
|||||
